R9 V3 and FSR2 Bundle
R9 V3 and FSR2 Bundle
R9 V3 and FSR2 Bundle
R9 V3 and FSR2 Bundle

R9 V3 and FSR2 Bundle

Prix promotionnel€1.059,00Prix habituel €1.098,00
Taxes incluses.Frais d'expédition calculés lors du passage à la caisse.

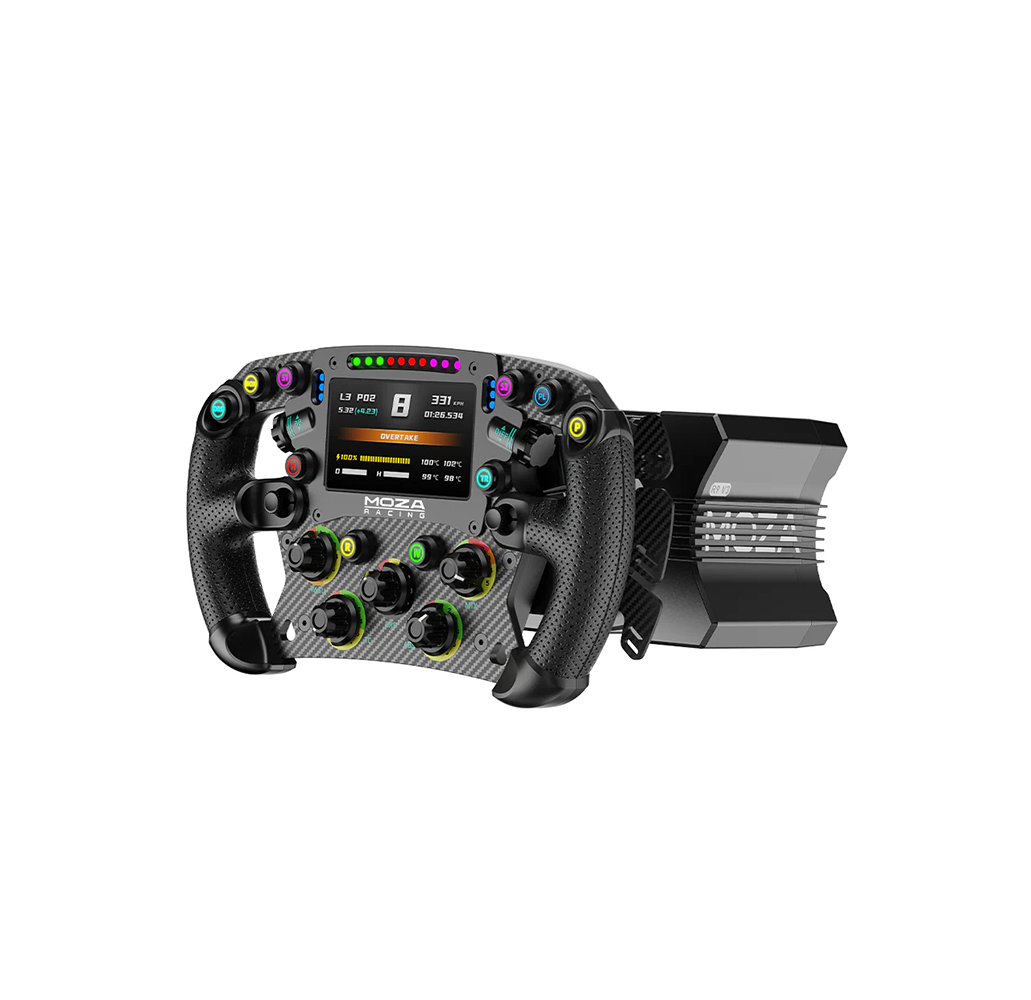

Take your racing setup to the next level with the MOZA R9 Direct Drive Wheel Base paired with the FSR2 Formula Wheel. Designed for dedicated sim racers and professional enthusiasts, this bundle delivers uncompromising force feedback, precision steering, and customizable controls for an authentic track experience. The R9's 9 Nm torque direct drive motor with 21-bit magnetic encoder ensures ultra-smooth and realistic force feedback, while the FSR2 formula wheel offers a 280mm carbon fiber frame, 4.3-inch touchscreen, six-paddle layout, and fully customizable dashboard UI. Perfect for sim racing on GT, Formula, Rally, and Touring cars, the MOZA bundle provides a unified ecosystem compatible with all MOZA bases and third-party wheels via the MOZA Hub. Elevate your rig with premium craftsmanship, high-performance technology, and immersive racing control.



Learn more about the individual products:

Upgrade to the Full MOZA Experience

Dispatched within 3 business days.

Assistance mondiale

Garantie de 2 ans

Livraison et retours gratuits

Se marie bien avec

CARACTÉRISTIQUES

MOZA R9 V3 DD Base

Platform: PC
FFB Drive System: Direct Drive
Max Wheel Rotation: Limitless
Peak Torque: 9 N·m
Peak Power: 180W
Input Voltage: 110V~220V AC → 36V DC
USB Refresh Rate: 1000Hz
Wheel Base Indicator Light: Supported
App Functionality: Supported (MOZA Pit House & MOZA Mobile App)
Quick Release: MOZA Quick Release
Connection Ports: Power, DC Input, Pedals, E-stop, USB, Dash, Shifter, Handbrake
Firmware Updating: Applicable
Temperature Control System: Intelligent Temperature Monitoring & Active Cooling
Encoder: 21-bit Magnetic Encoder (2,097,152 steps per revolution)
Motor Type: High-performance Servo Motor (18-Slot / 16-Pole Configuration)
Housing Material: Aviation Grade Aluminum Alloy
Color: Black
Mounting: 4-hole bottom mount; optional table clamp and side mounting supported
Table Clamp: Optional
Side Mounting: Optional
Emergency Stop Switch: Optional
Size (L x W x H):240 × 157 × 124 mm
Accessories: User Manual, Warranty Card, Power Supply, USB Cable, Toolkit

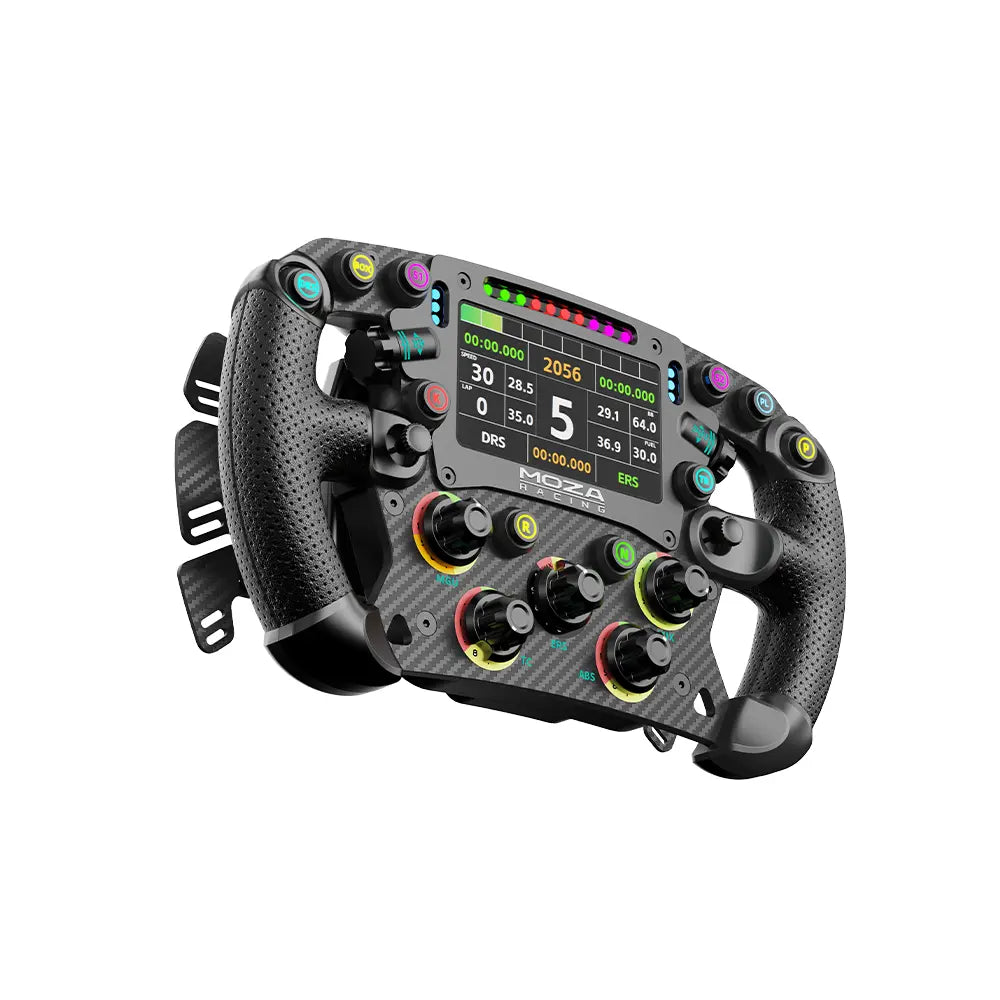

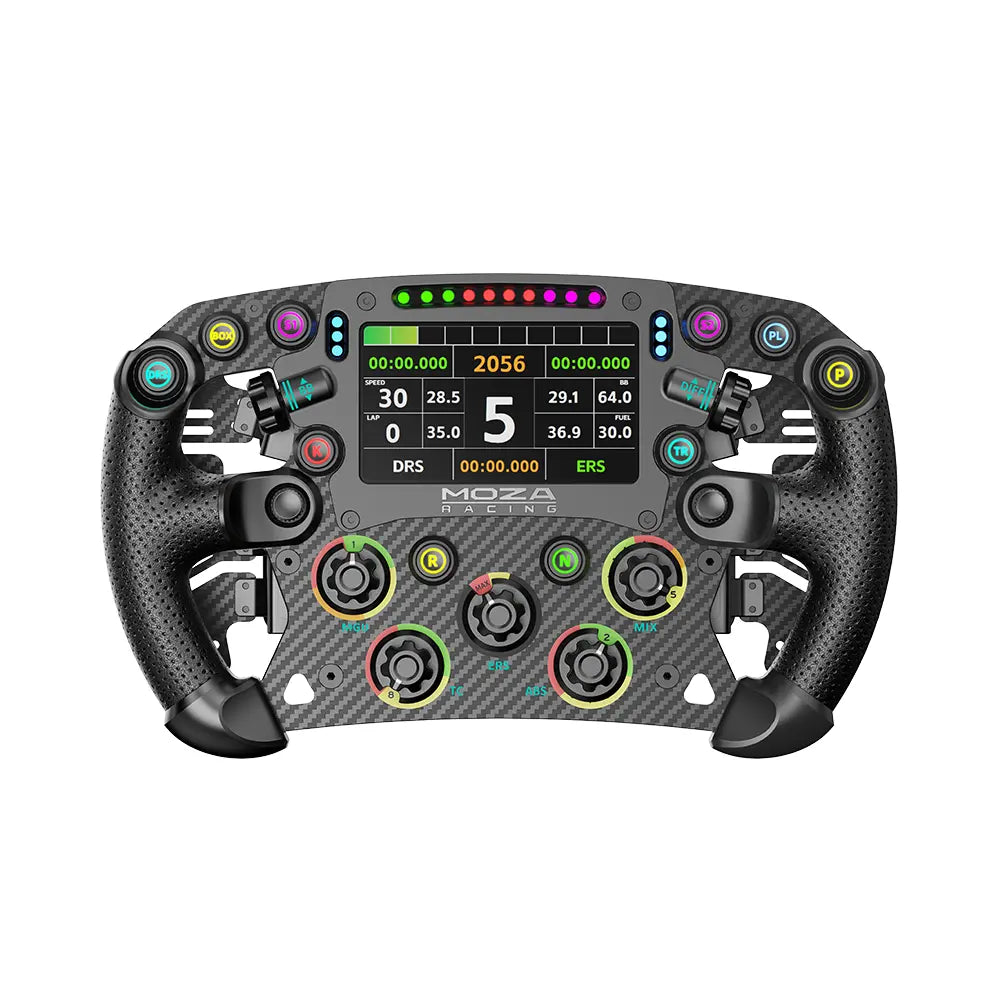

FSR2 Formula Wheel

Size: 280mm formula-style steering wheel
Back Plate Material: Aerospace-grade aluminum alloy
Face Plate Material:5mm-thick 3K twill carbon fiber
Grip Material: Perforated microfiber leather
Display Screen: 4.3-inch touchscreen display
Display UI: Fully customizable
Short-Travel Backlit Buttons: 10
Backlit Color Options for Buttons: 16.7 million colors
Rotary Encoders: 2
Thumb Encoders: 3
7-Way Switches: 2
Signal Lights: 6 LED side-mounted signal lights
Shift Indicator Lights: 10 LED top-mounted shift indicator lights
Adjustable Colors for Shift Lights, Signal Lights, and Button Lights: 16.7 million colors
Shift Paddles: Hall sensor magnetic carbon fiber paddles
Dual Clutch Paddles: Hall sensor magnetic carbon fiber paddles
Smart Telemetry: Supported
Fully Adjustable RPM LEDs through MOZA Pit House: Supported
Release Method: All-aluminum quick release
Communication Methods: Wireless or via conductive slip ring
Compatibility: Compatible with all MOZA wheelbases; works with 3rd party wheelbases via MOZA hub

User Manual

MOZA FSR2 Formula Wheel User Manual >

MOZA R9 DD Wheelbase User Manual >

QUOI DE NEUF

  • FSR2 Formula Wheel * 1

  • R9 V3 DD Base * 1

  • Adapter

  • USB Cable

  • Toolkit

  • User Manual

  • Warranty Card

  • MOZA Sticker

FAQ

Still have questions? Get help from a MOZA expert.

Which platforms and games are supported by the R9 V3 and FSR2 bundle?

The bundle is designed for PC platforms and supports major racing simulators including Assetto Corsa, Forza Horizon series, iRacing, F1 series, Project CARS, and more, ensuring wide compatibility.

How realistic is the force feedback on the R9 V3?

Equipped with a 9Nm direct drive servo motor and a 21-bit magnetic encoder, combined with the NexGen 4.0 force feedback algorithm, the R9 V3 delivers exceptionally smooth, precise, and detailed force feedback that accurately simulates real driving sensations.

What advantages does the FSR2’s touchscreen and controls offer?

The FSR2 features a 4.3-inch high-definition touchscreen for intuitive UI navigation and quick access to multiple dashboard layouts. It also includes 10 backlit buttons, rotary encoders, and 6 RGB signal lights for enhanced control during racing.

How easy is it to install and integrate this bundle with existing rigs?

The R9 V3 features a standard 4-hole bottom mount compatible with most racing rigs and floor stands. The FSR2 uses a quick-release system for easy attachment and removal. Full installation instructions and customer support are provided.

What warranty does MOZA offer for the R9 V3 and FSR2 bundle?

MOZA Racing provides a 2-year warranty for the main body of the R9 V3 Direct Drive Wheel Base, and a 1-year warranty for the FSR2 Formula Steering Wheel, covering defects in materials and workmanship. Please note that accessories are not covered under warranty. This warranty applies exclusively to purchases made through MOZA’s official channels and authorized distributors. For more details, please refer to our Warranty Policy.
