SPEZIFIKATIONEN

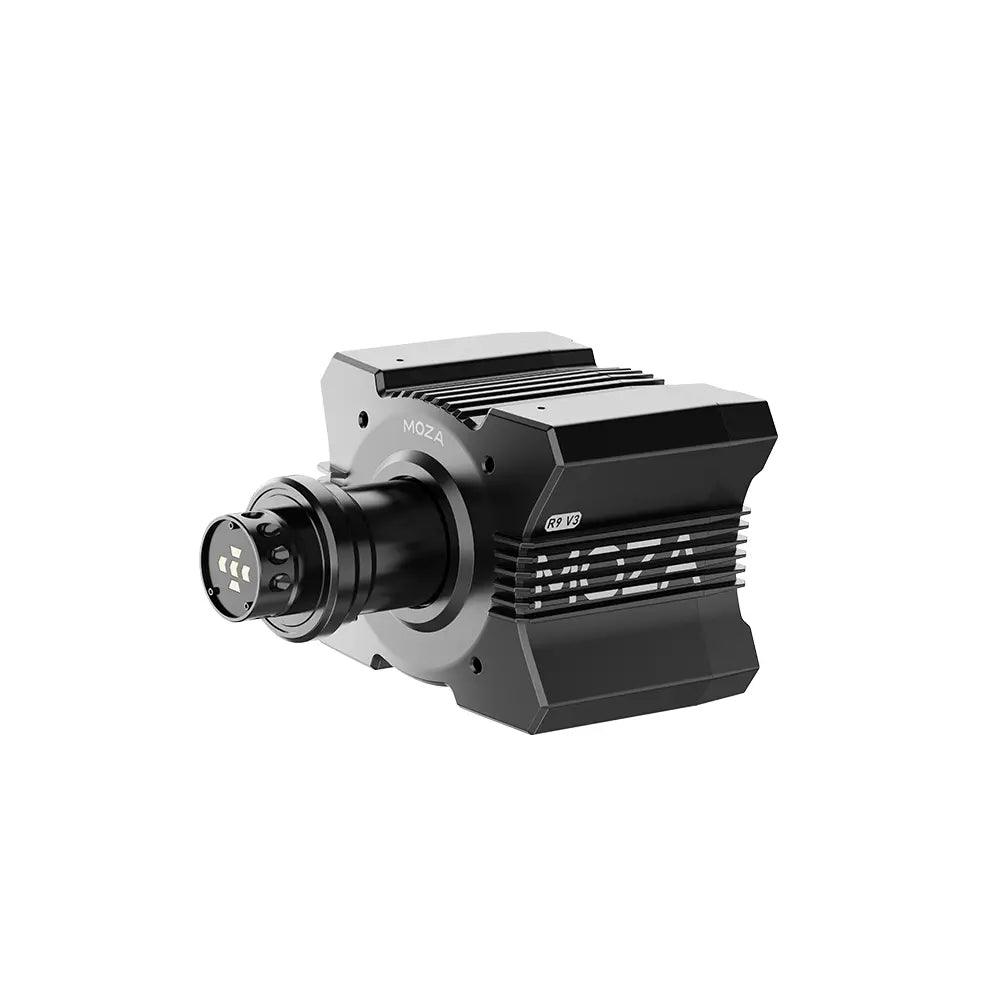

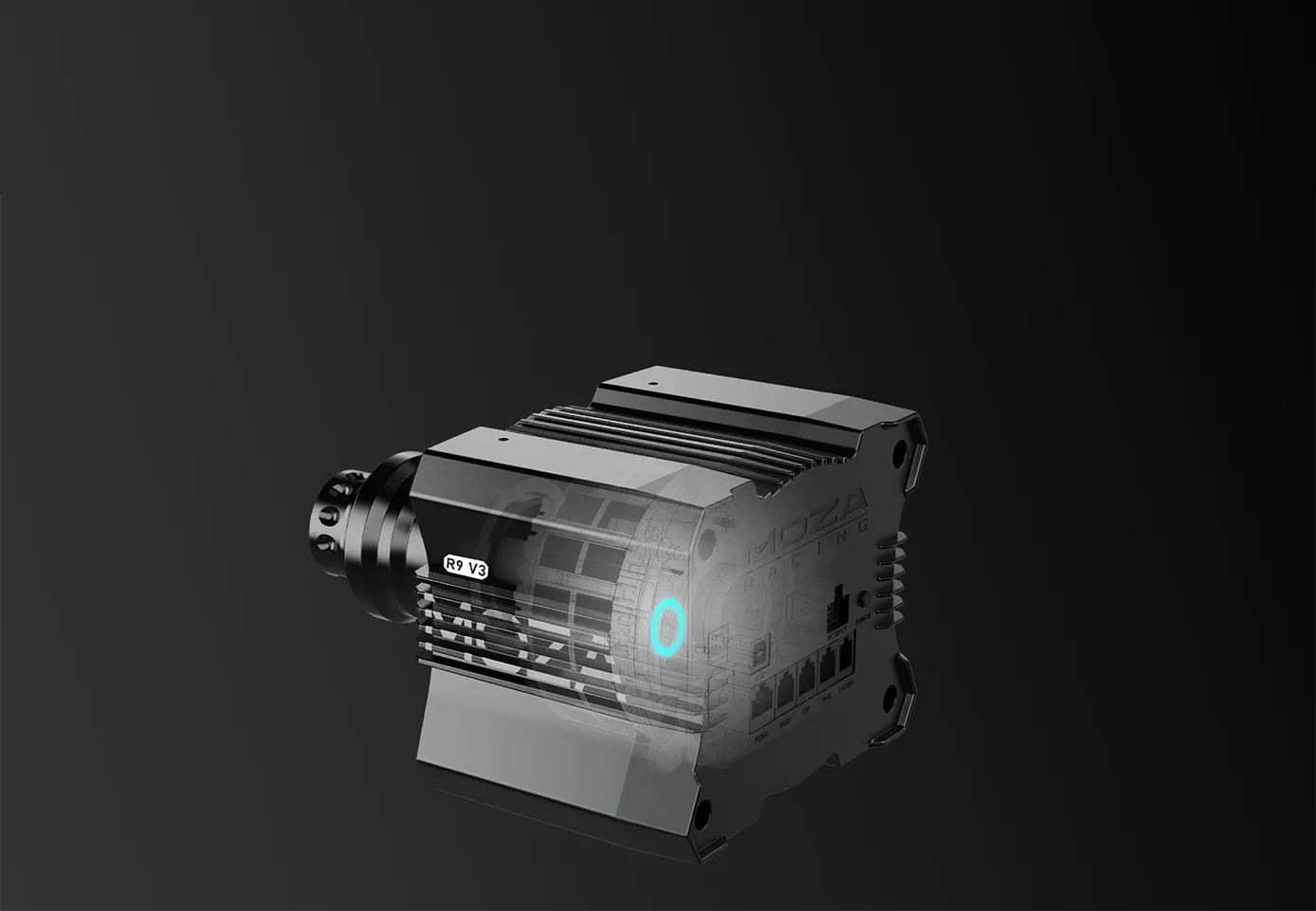

MOZA R9 V3 DD Base

Platform: PC
FFB Drive System: Direct Drive
Max Wheel Rotation: Limitless
Peak Torque: 9 N·m
Peak Power: 180W
Input Voltage: 110V~220V AC → 36V DC
USB Refresh Rate: 1000Hz
Wheel Base Indicator Light: Supported
App Functionality: Supported (MOZA Pit House & MOZA Mobile App)
Quick Release: MOZA Quick Release
Connection Ports: Starting Switch, Power Supply, Data, Emergency Stop Switch, Display Screen
Firmware Updating: Applicable
Temperature Control System: Intelligent Temperature Monitoring & Active Cooling
Encoder: 21-bit Magnetic Encoder (2,097,152 steps per revolution)
Motor Type: High-performance Servo Motor (18-Slot / 16-Pole Configuration)
Housing Material: Aviation Grade Aluminum Alloy
Color: Black
Mounting: 4-hole bottom mount; optional table clamp and side mounting supported
Table Clamp: Optional
Side Mounting: Optional
Emergency Stop Switch: Optional
Size (L x W x H): 240 × 157 × 124 mm
Accessories: User Manual, Warranty Card, Power Supply, USB Cable, Toolkit

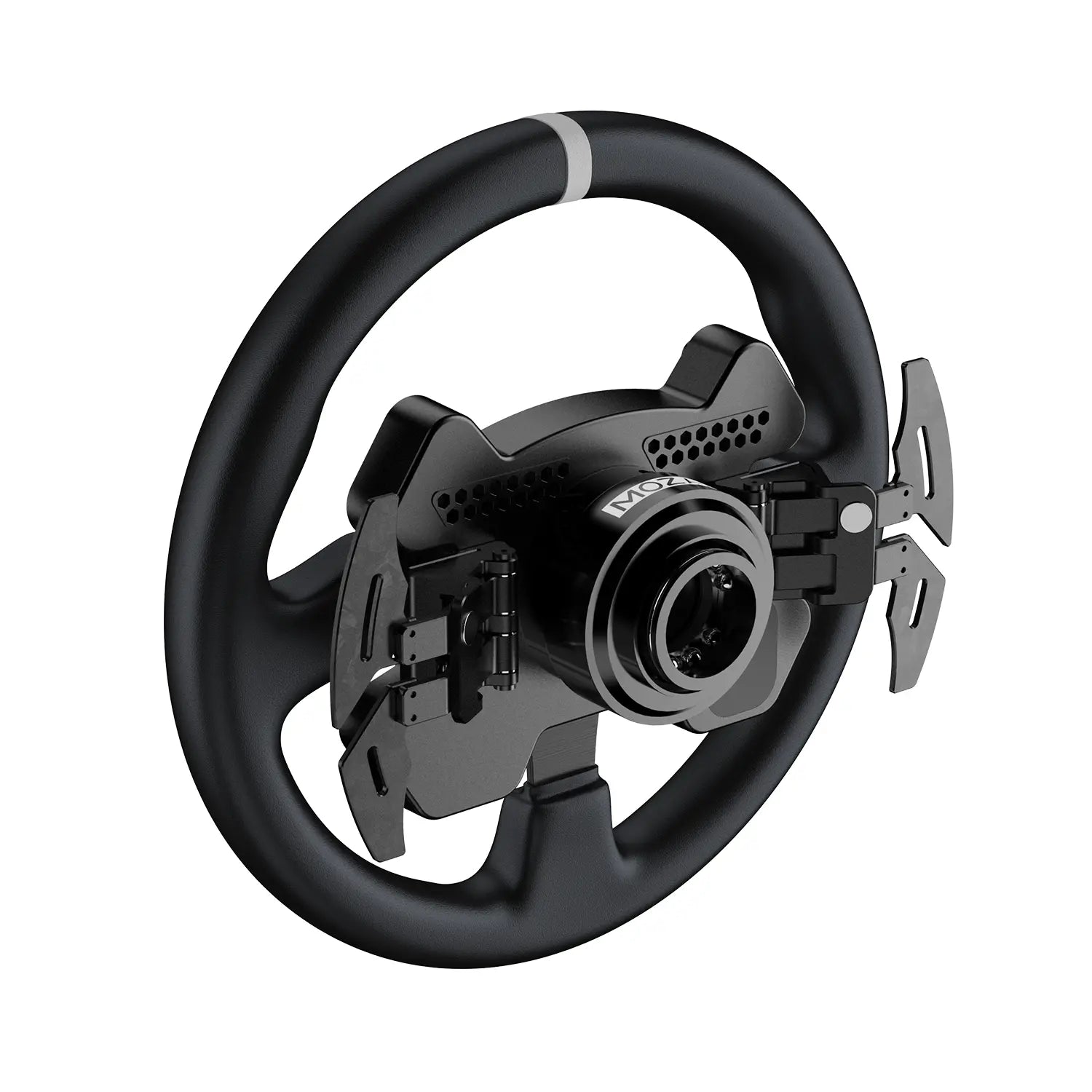

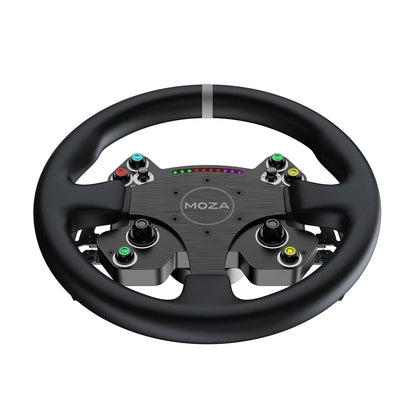

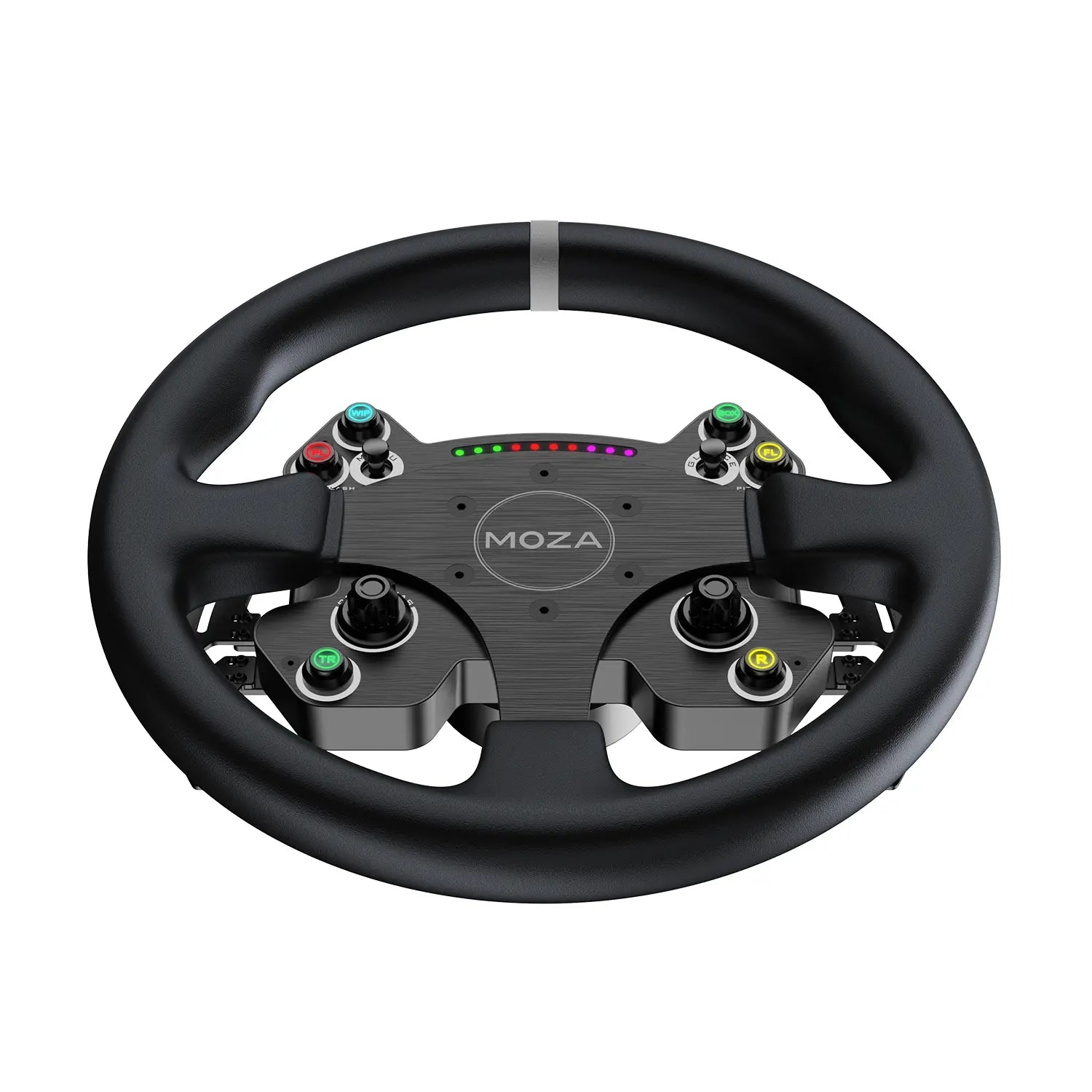

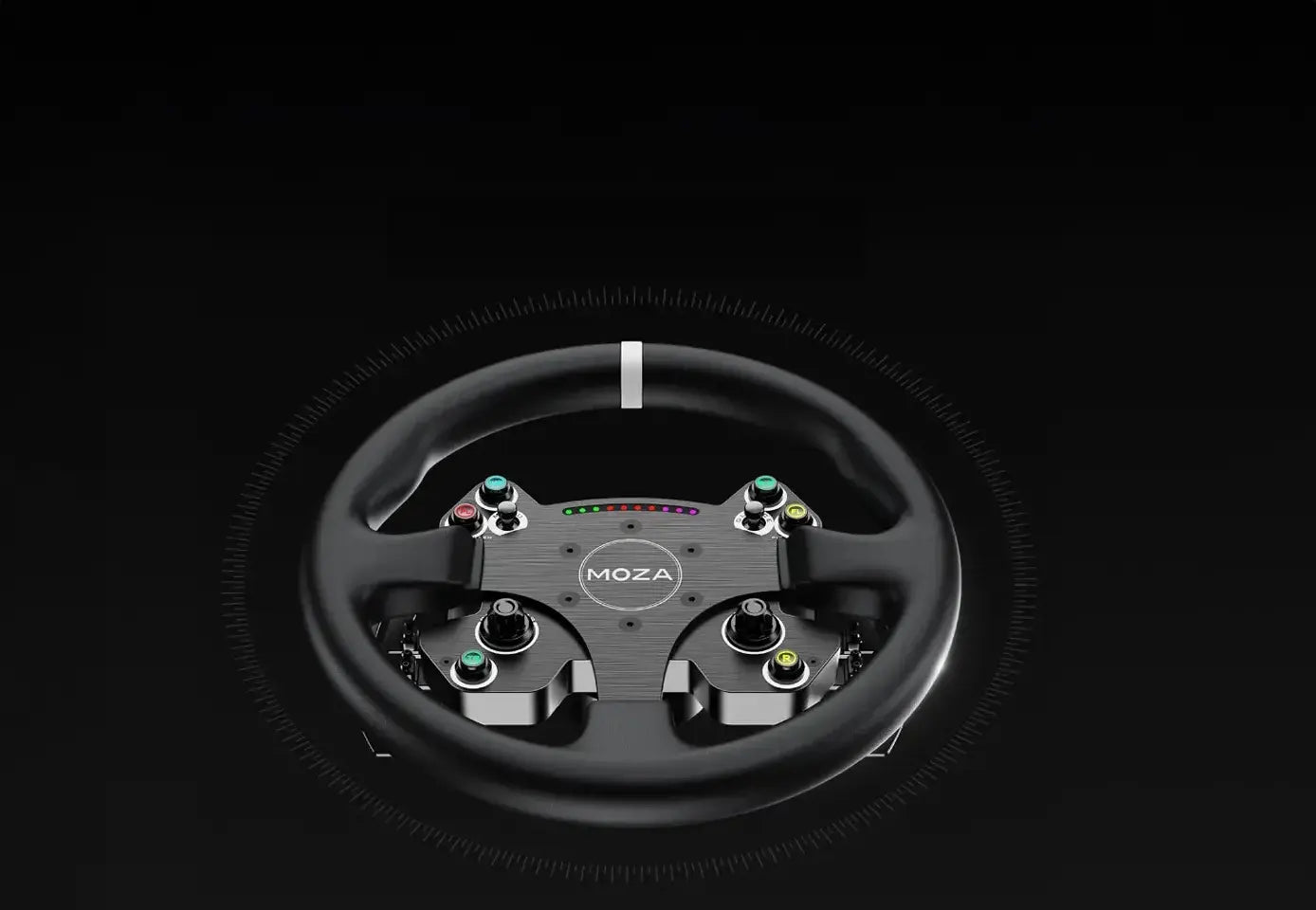

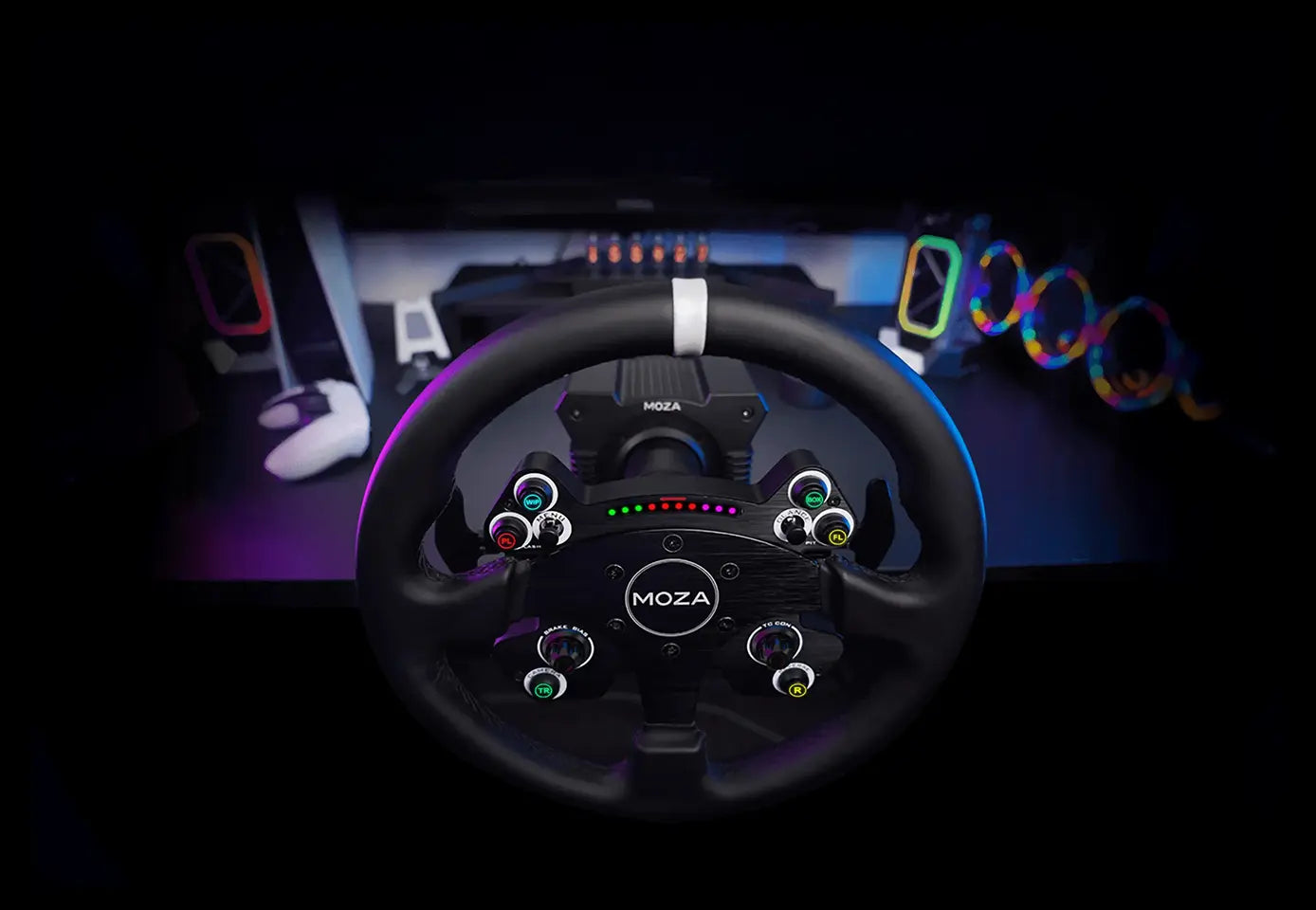

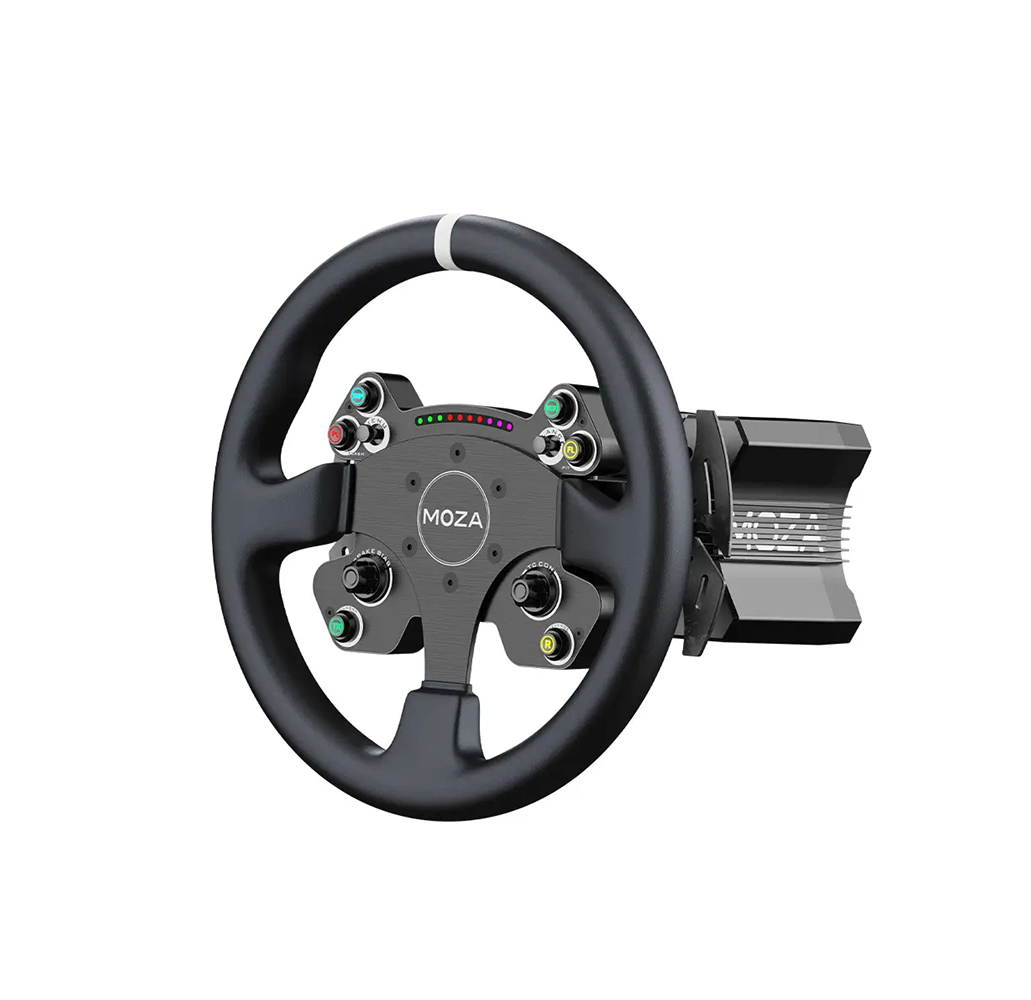

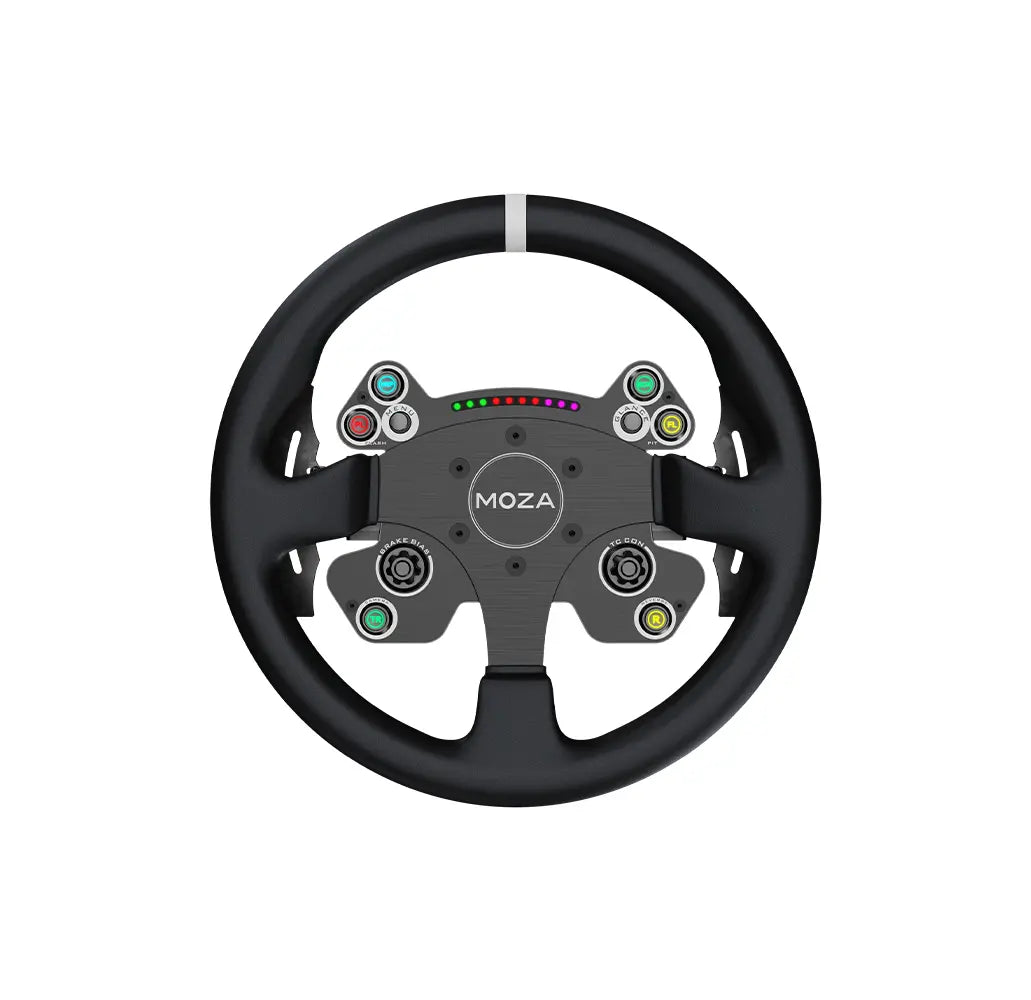

MOZA CS V2P Steering Wheel

Grips: Microfiber Leather
Face Plate Material: Aluminum Alloy
Back Plate Material: Aluminum Alloy
Shifter Material: Forged Carbon Fiber
Size (Diameter): 13 Inches

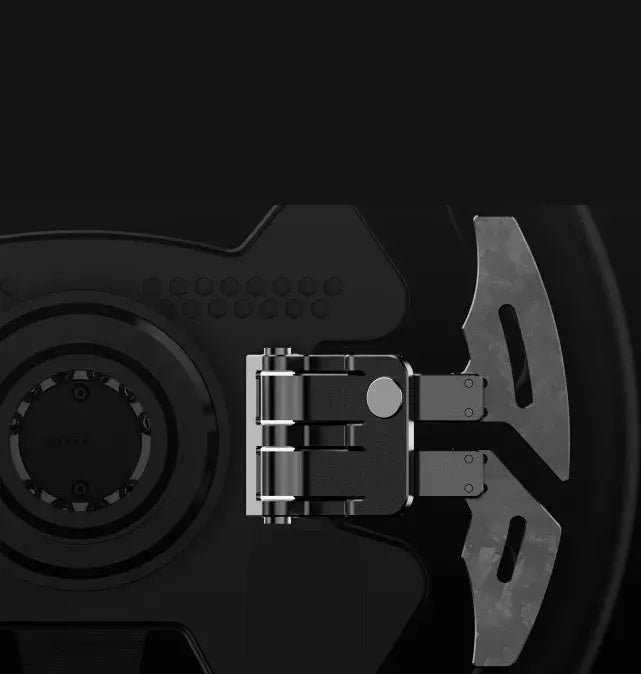

Magnetic Shifters: 2
Mechanical Key Buttons: 6
Joysticks: 2
Rotary Encoders: 2
LED RGB Light Beads: 10
Choice of Colors (LED): 7
Intelligent Telemetry: Supported
RPM LED Customization via MOZA Pit House: Supported

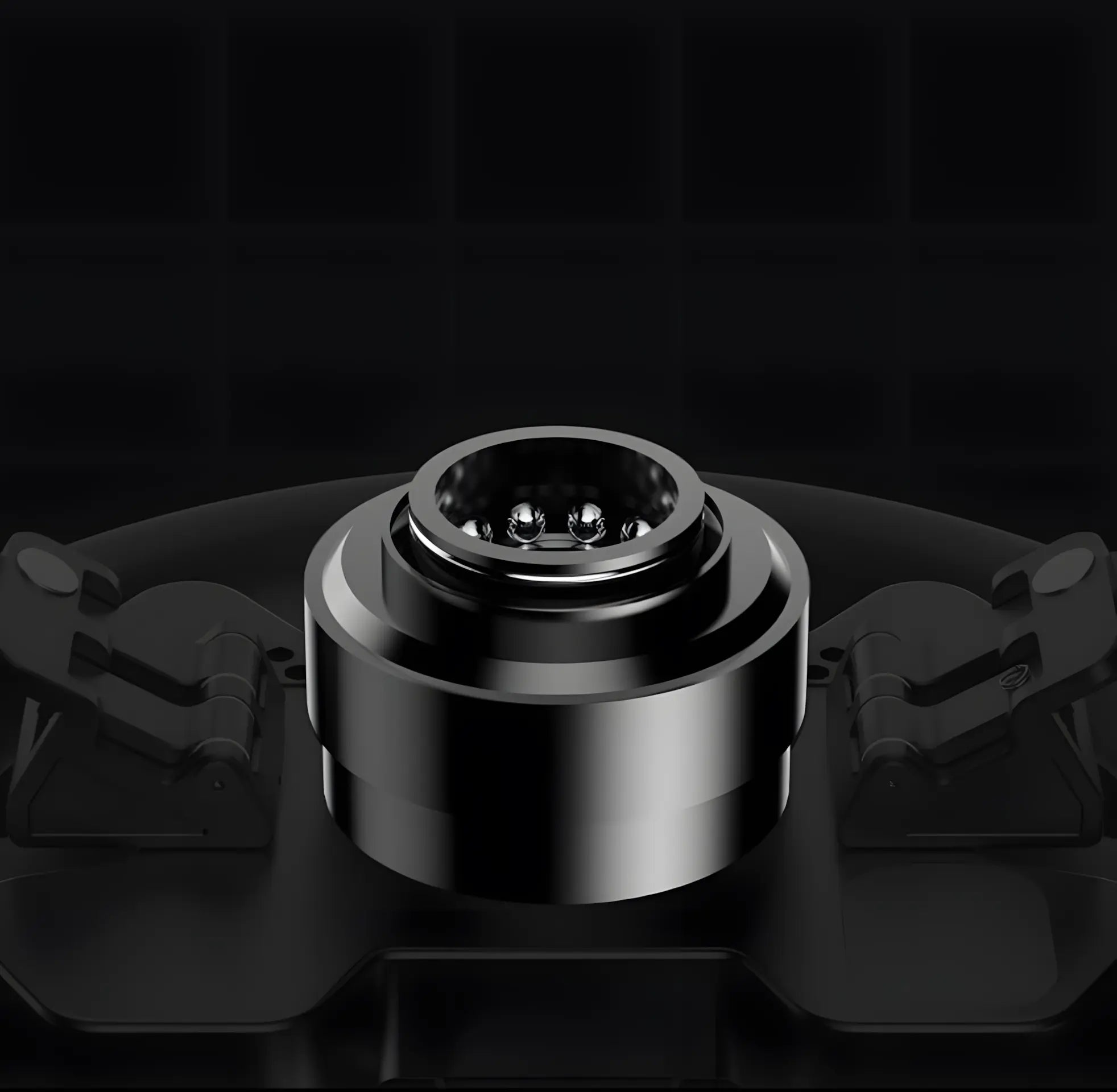

Quick Release: MOZA Quick Release
Communication Method: Wireless (MOZA 2.4G Wireless Technology)
Shifter Sensor Type: Non-contact Photoelectric Sensor

WAS IST ENTHALTEN

  • R9 V3 Wheelbase * 1

  • MOZA CS V2P Steering Wheel * 1

  • Adapter

  • USB Cable

  • Toolkit * 2

  • User Manual

  • Warranty Card

  • MOZA Stickers

FAQs

Still have questions? Get help from a MOZA expert.

Is this bundle compatible with my PC and games?

Yes. The bundle is designed for PC and supports a wide range of popular sim racing titles, including iRacing, Assetto Corsa, ACC, F1 series, Dirt Rally, and more. It’s plug-and-play with MOZA Pit House and regularly updated for game compatibility.

Do I need any additional accessories to mount the wheel base or wheel?

The R9 V3 includes standard bottom mounting holes compatible with most sim racing rigs. A table clamp is optional if you plan to use it on a desk. Side mounting brackets and emergency stop switches are also available separately.

How does the wireless communication between the CS V2P and the R9 work? Is it stable?

The CS V2P uses MOZA’s 2.4G wireless communication, tested over thousands of hours for ultra-stable and responsive input with zero interference. No external batteries or USB cables are required.

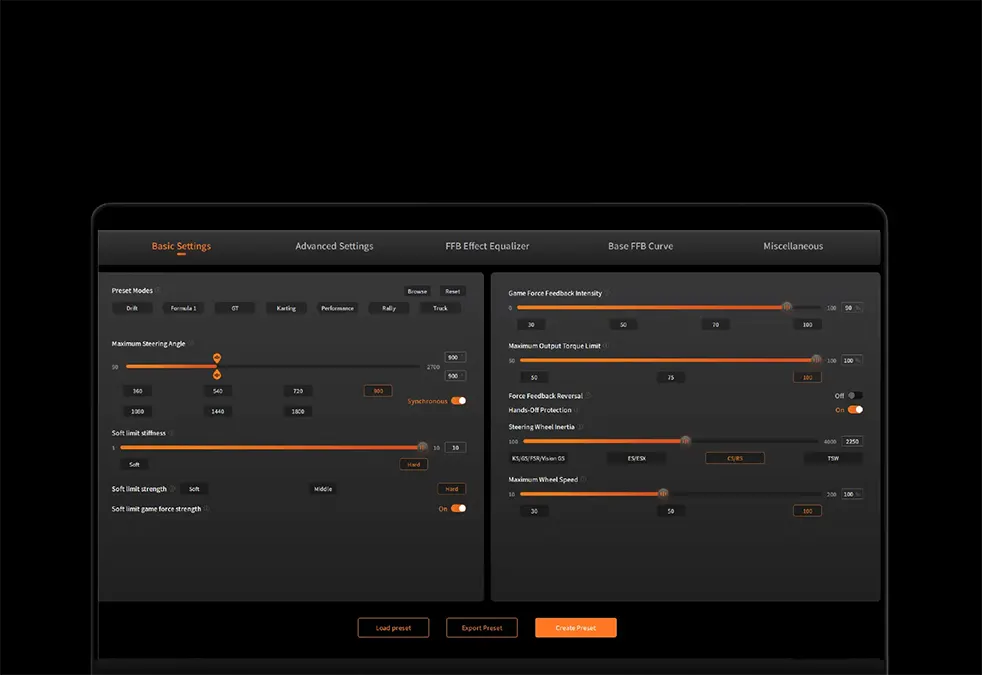

Can I customize the force feedback and controls easily?

Absolutely. With MOZA Pit House software, you can fully tune force feedback curves, mechanical effects, RPM lights, and button mappings. Preloaded game profiles make it beginner-friendly, while advanced settings give pros full control.

Is firmware update support available?

Yes. Both the wheel base and steering wheel support firmware updates via MOZA Pit House or the MOZA mobile app to ensure ongoing performance improvements and compatibility with the latest games.

Customer Reviews

Based on 14 reviews
93%
(13)
7%
(1)
0%
(0)
0%
(0)
0%
(0)
R
Reshard R.
Good 👍

highly recommend it

A
Anonymous
Robust, fluid quality!

From the heft of the build to the FFB, is like a vivid heavensent dream. Would recommend many times over!

T
Travis F.
Excellent DD combo for exeptional mid-range performance

Everything from the build quality, custom lighting, fidelity and force feedback, all of it was impressive coming from a gear and belt drive entry level wheel. The software takes some tweaking to get right for your feel, but quite a few of the in software presets were great baselines. The wheel itself is very comfotable, the button layout is good and the paddles are just fantastic. Clicky on the top shifters and springy on the lower second clutch. The base gets toasty when doing ovals, but hasn't ever dropped in force in use for me. I did turn it down a tad in the iRacing settings to adjust. After researching quite a long time, and with other direct competitors future in the air, this was the easy choice and I've not been disappointed.

t
todd s.
Love it

Great entry level equipment. Couldn’t be happier. High quality

M
Matt G.
Man this thing rips

Coming from a t300 this wheel is incredible. From drifting on Assetto to racing numerous disciplines on iRACING this wheel base and rim are very capable for all of it. The fidelity is night and day difference. I would highly recommend this to anyone getting into sim racing or drifting.

a
adnan c.
Wish I got r12

Amazing bundle but I would have preferred little more which would be r12 otherwise amazing bundle

F

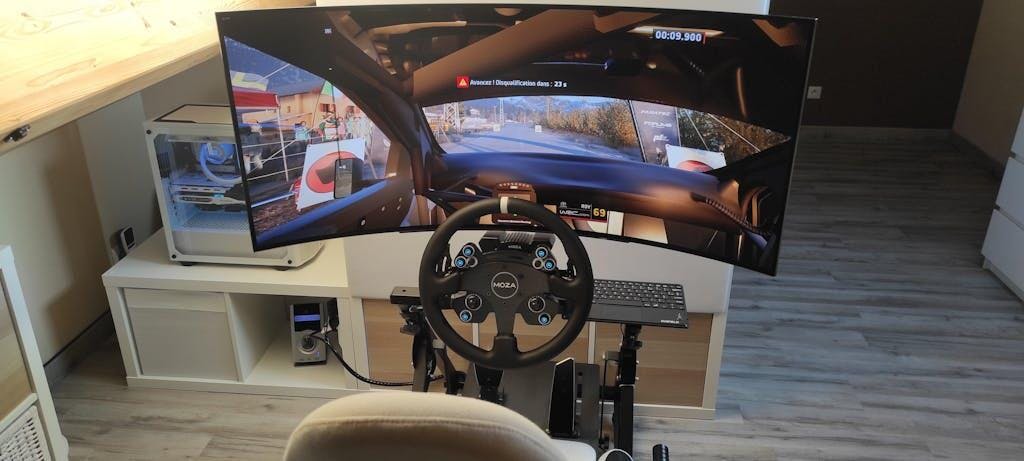

Frédéric E.
Excellent matériel !

J'ai enfin le setup que je souhaitais et j'en suis très satisfait.
La puissance du R9 est largement suffisante, aucun clipping c'est du tout bon.
Passer d'un T248 (qui est un bon volant pour débuter) au R9, c'est le jour et la nuit en terme de sensation de conduite et de retour de force.
Le volant CS est parfait pour du rallye, drift. Le KS pour le GT et F1.
Il me manque la sequentielle, un dash et je serais au top.
J'ai deux bass shaker (un sous les fesses et l'autre sous les pédales, y'a pas à dire ça amplifie les sensations.
LG Ultragear™ 45GR95QE-B Oled
Asrock Radeon RX 7800 XT Steel Legend
AMD Ryzen™ 5 7600X
ASUS PRIME B650-PLUS
Lexar ARES RGB DDR5 RAM Kit 32Go
Cockpit de chez GT Omega

S
Seth T.
High Quality Direct Drive wheel

I love this wheel. I came from a Logitech G29 and this is 1000% better
