R9 V3 Wheel Base

Name: R9 V3 Wheel Base
Brand: MOZA Racing
SKU: T02D010007D
Price: 399.00 EUR
Availability: InStock

€399,00

Tax included.Shipping calculated at checkout.

213 total reviews

The MOZA R9 is the wheelbase for the racers that want to take it seriously. This cutting-edge product offers 9 Nm of torque from a direct-drive servo motor, ensuring unparalleled performance. Crafted with aviation-grade aluminum alloy, it combines minimum weight with maximum torque. With wireless power and communication, smart temperature control, and easy assembly, it’s a breeze to use. Experience control like never before with the MOZA Pit House Control Center and enjoy seamless operation through the APP Cloud Control.

Overview >

Product variants

Model: R9 V3

Upgrade for the Ultimate Simulation

KS Steering Wheel

€279,00

CS V2P Steering Wheel

€279,00

MOZA SR-P Pedals

€159,00 €179,00

MOZA CRP2 Load Cell Pedals (Throttle+Brake)

€449,00

Usually ship within 7 business days.

Global Support

Enjoy Worry-Free Use

Worldwide Shipping & Returns

Pairs well with

R9 V3 Wheel Base

Usually ship within 7 business days.

€399,00

At a Glance

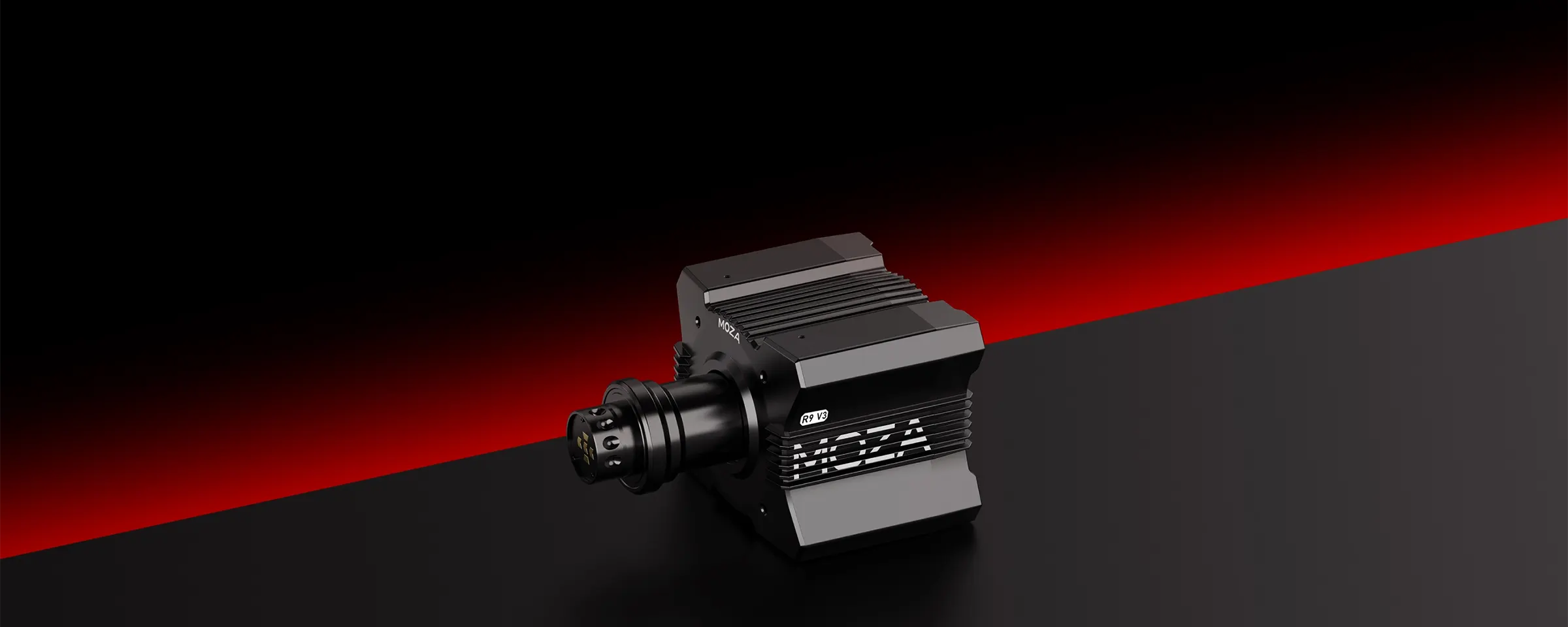

MOZA R9 V3 Direct Drive Wheel Base

The MOZA R9 V3 is a professional-grade direct drive wheel base delivering 9Nm of consistent torque. Engineered for precision and reliability, it is ideal for serious sim racers seeking a compact yet powerful force feedback solution.

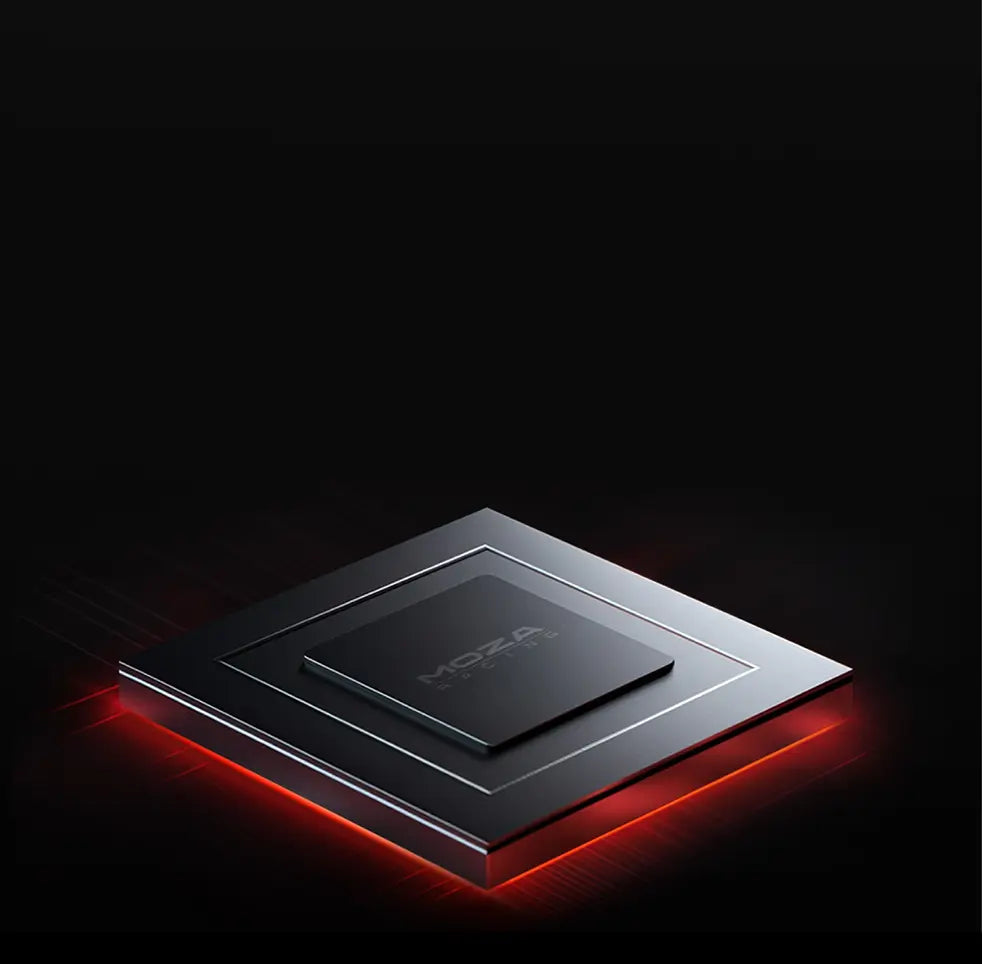

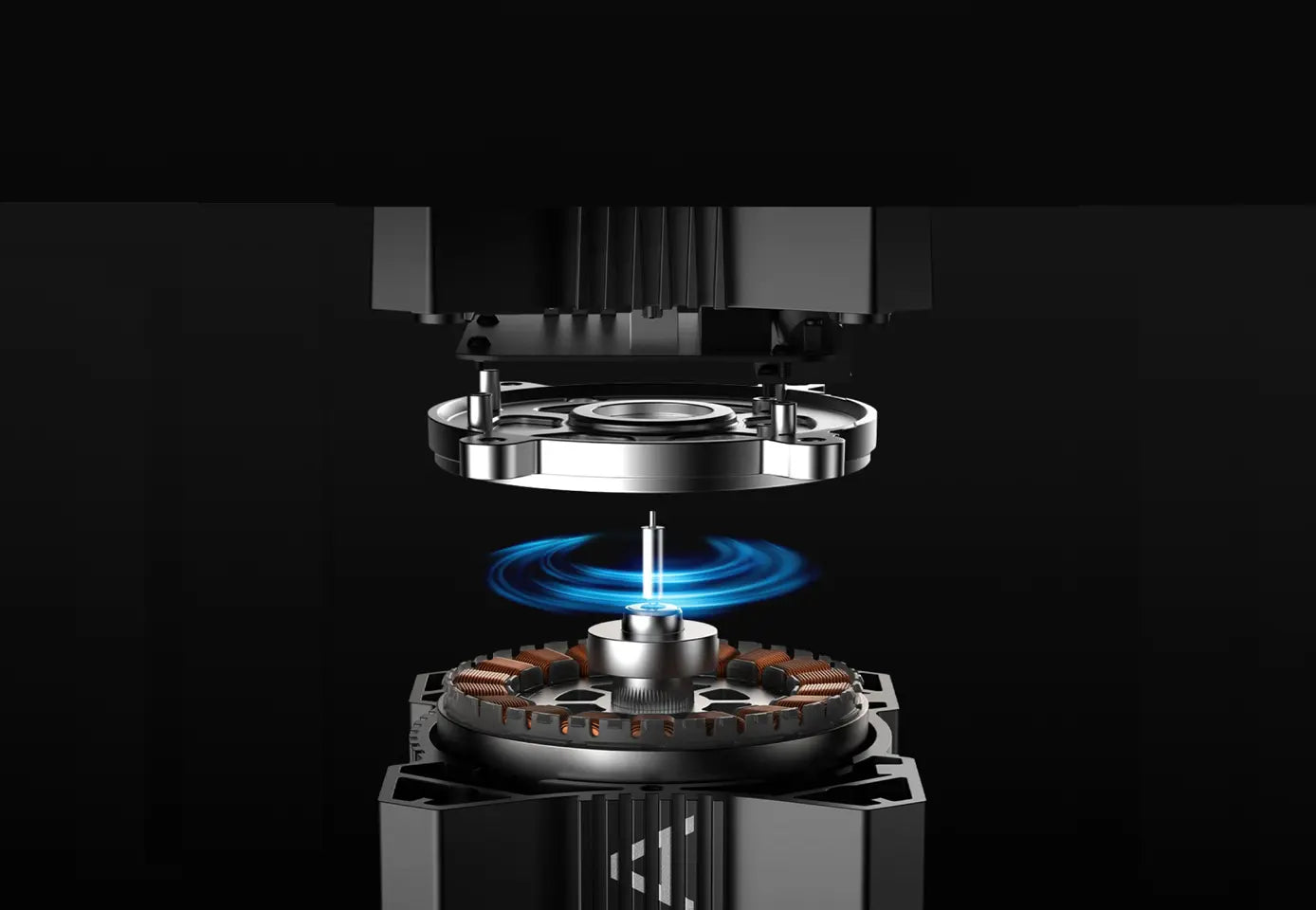

21-Bit Magnetic Encoder With a 280MHz High-Performance Processor

With 2,097,152 steps per rotation and an angular resolution of 0.00017°, the system ensures ultra-smooth control, rapid response, and exceptionally detailed force feedback for a highly precise and immersive driving experience.

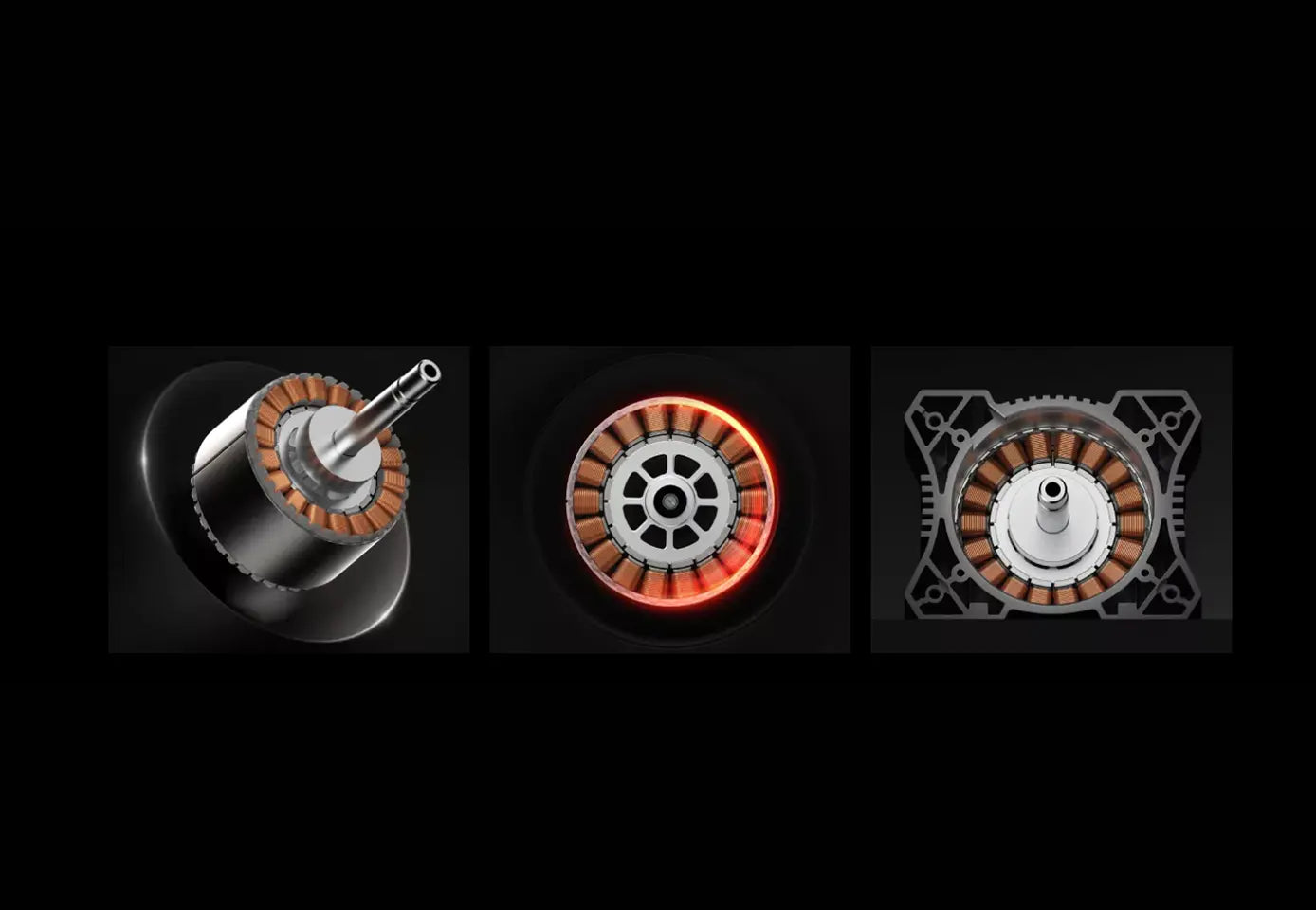

MOZA High-Performance Servo Motor

Custom-built servo motor designed for racing, offering ultra-smooth rotation, minimal vibration, and precise control.

NexGen 4.0 Force Feedback Algorithm with Enhanced Dynamic Feedback

MOZA’s NexGen 4.0 algorithm delivers smooth, detailed, and responsive force feedback. Experience sharper curbs, clearer surface textures, and quicker reactions to tire slip and weight transfer—with improved torque compensation for precise steering.

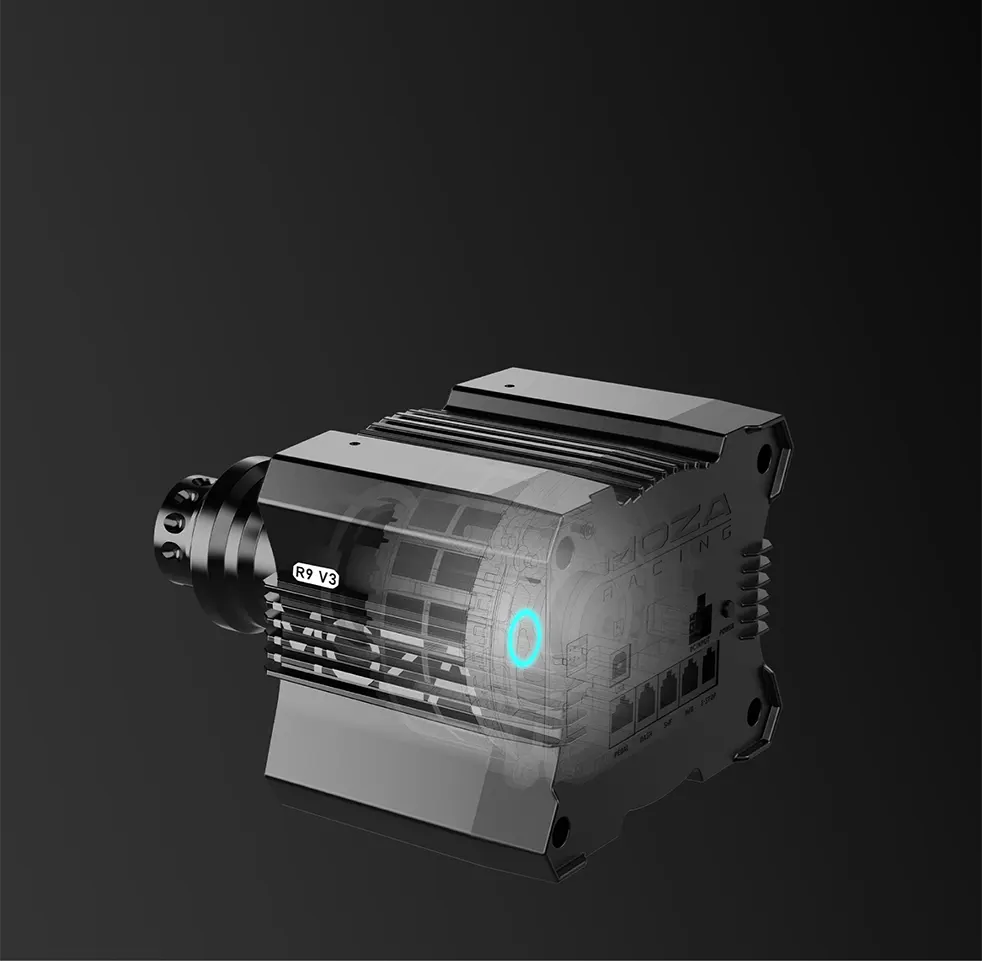

Smart Temperature Control System

Advanced temperature monitoring ensures optimal performance and long-term durability under heavy load conditions.

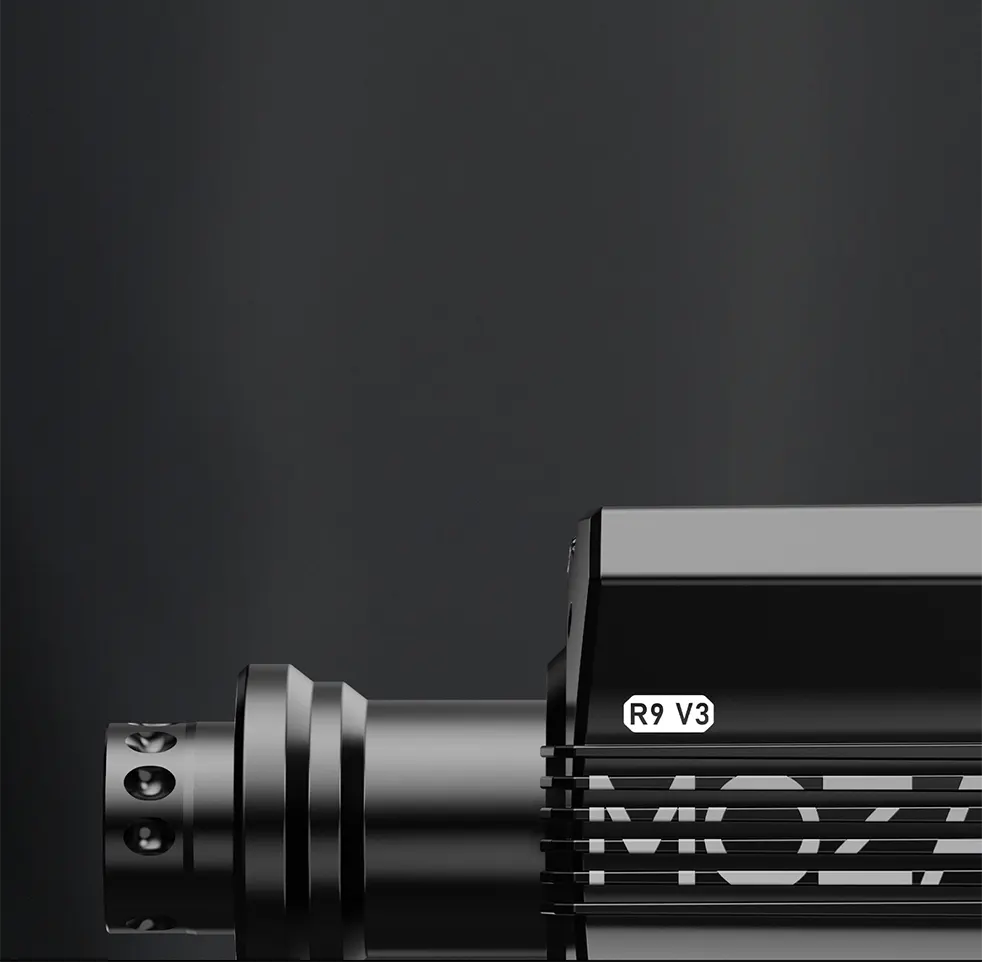

Aviation Grade Aluminum Alloy Housing

Unmatched quality and durability. The MOZA R9's whole housing is made of aviation grade aluminum alloy.

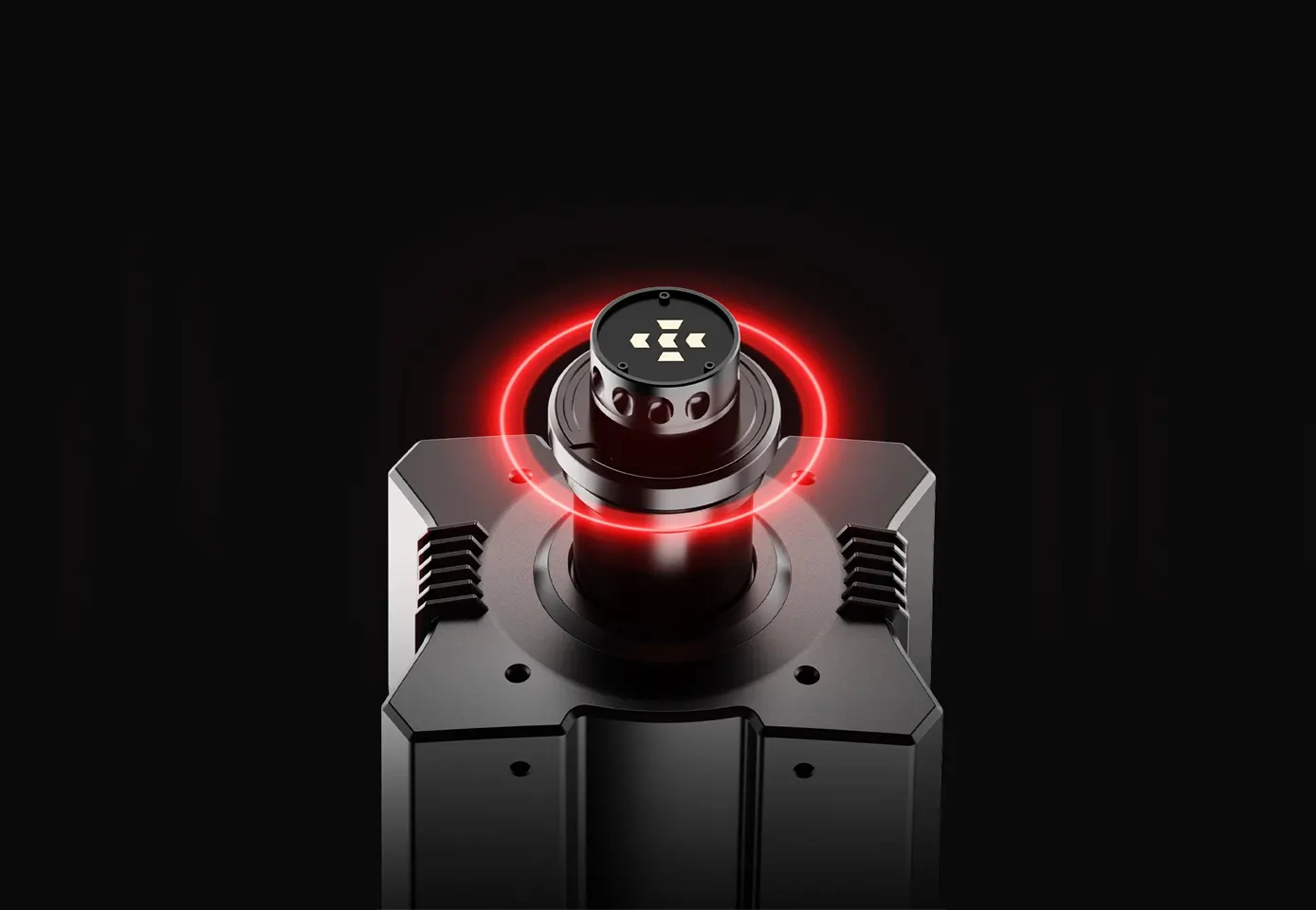

Industrial Conductive Slip Ring

The base and the steering wheel are connected through a automotive-grade conductive slip ring with a life span of over 5 million revolutions. The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation.

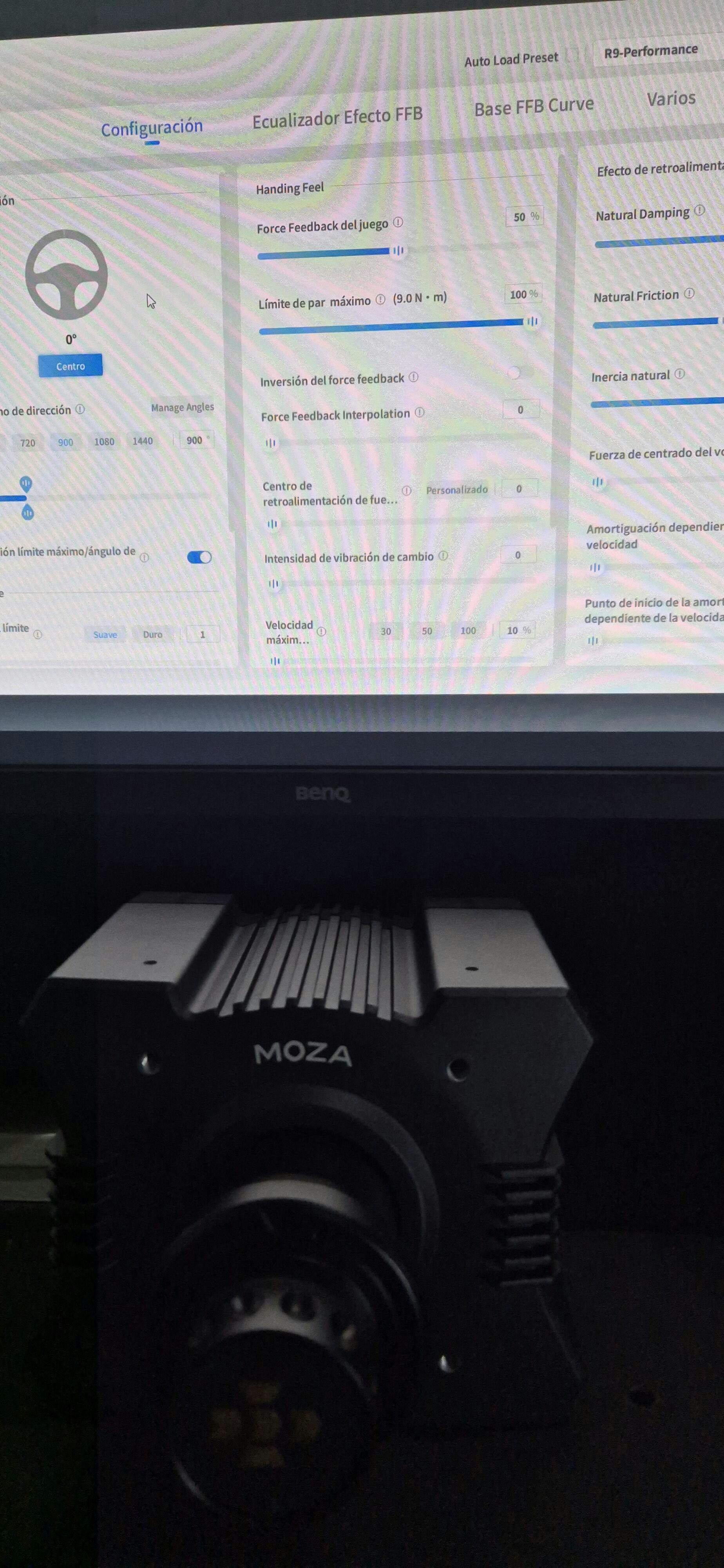

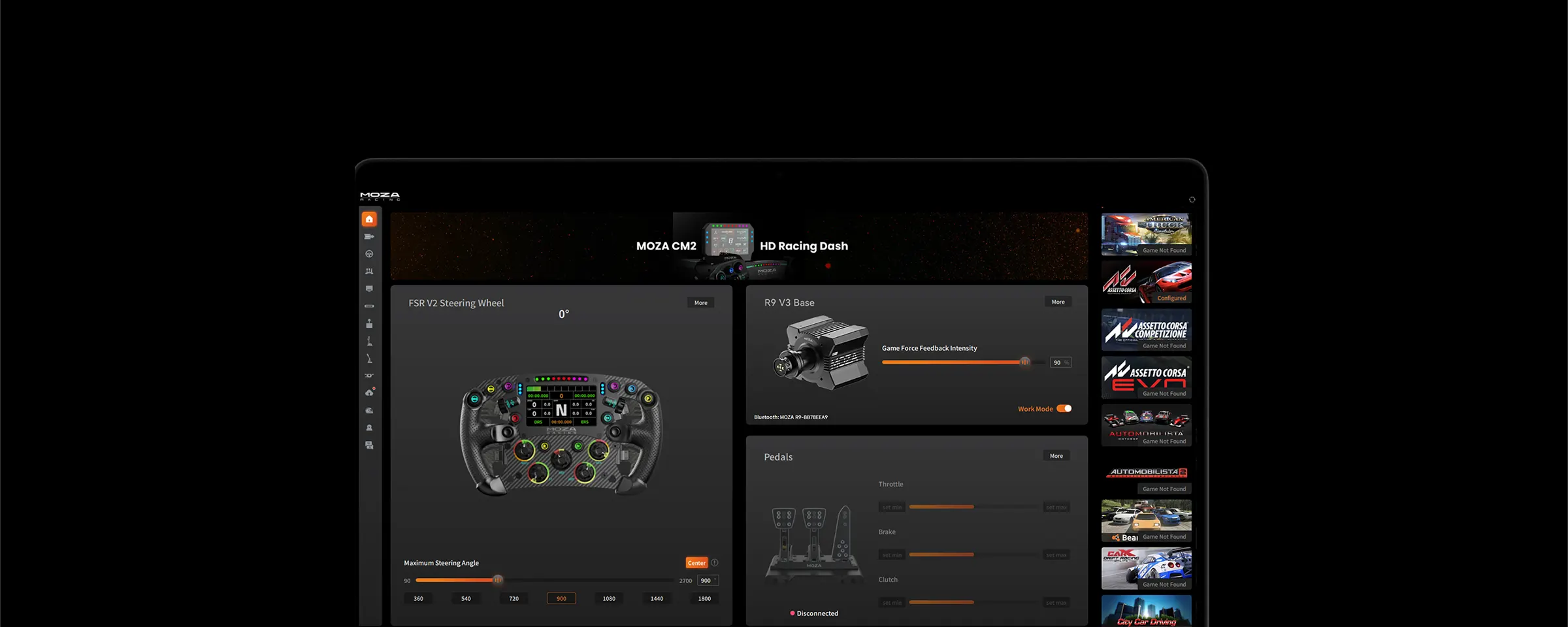

The Ultimate Control Hub for MOZA Ecosystem

Easily tune your entire setup—from wheelbase to pedals—with one powerful, intuitive interface. Access game-specific presets, pro driver configs, and advanced FFB settings to get race-ready in seconds.

Learn More

SPECS

MOZA R9 V3 DD Base

Platform: PC
FFB Drive System: Direct Drive
Max Wheel Rotation: Limitless
Peak Torque: 9 N·m
Peak Power: 180W
Input Voltage: 110V~220V AC → 36V DC
USB Refresh Rate: 1000Hz
Wheel Base Indicator Light: Supported
App Functionality: Supported (MOZA Pit House & MOZA Mobile App)
Quick Release: MOZA Quick Release
Connection Ports: Power, DC Input, Pedals, E-stop, USB, Dash, Shifter, Handbrake
Firmware Updating: Applicable
Temperature Control System: Intelligent Temperature Monitoring & Active Cooling
Encoder: 21-bit Magnetic Encoder (2,097,152 steps per revolution)
Motor Type: High-performance Servo Motor (18-Slot / 16-Pole Configuration)
Housing Material: Aviation Grade Aluminum Alloy
Color: Black
Mounting: 4-hole bottom mount; optional table clamp and side mounting supported
Table Clamp: Optional
Side Mounting: Optional
Emergency Stop Switch: Optional
Size (L x W x H): 240 × 157 × 124 mm
Accessories: User Manual, Warranty Card, Power Supply, USB Cable, Toolkit

Dimensions

R9 V3 Dimensions

User Manual

MOZA R9 DD Wheelbase User Manual >

WHAT'S INBOX

R9 V3 DD Wheelbase x1
Power Supply
Toolkit
USB Cable
User Manual
Warranty Card

FAQs

FAQs - Find out more

Which steering wheels are compatible with the MOZA R9 V3?

The R9 V3 is compatible with all MOZA Racing steering wheels, including:

MOZA GS V2P / GS GT
MOZA FSR / FSR2
MOZA KS
MOZA CS V2
MOZA RS V2
MOZA ESX
And future MOZA universal wheels

Compatibility of MOZA R9 V3 with Fanatec and Thrustmaster and other brands of hardware?

We are always asked if it is possible to use Fanatec and Thrustmaster, or other brands of wheels, pedals, shifters, and other accessories with MOZA Racing. Often, devices from different vendors are not compatible with each other. So you can’t directly connect products from different companies to each other, or at least not support that way.

There may be adapters on the market that make this combination possible, but due to the different technologies used in the hardware and different signal tolerances, these solutions are unreliable even with similar specs. MOZA Racing cannot make any representations regarding third-party adapters or similar solutions. Of course, we are striving to achieve the highest possible incompatibility between all devices, although this is not easy to achieve. For any compatibility issues, we can only direct you to the information provided on our product pages or FAQs.

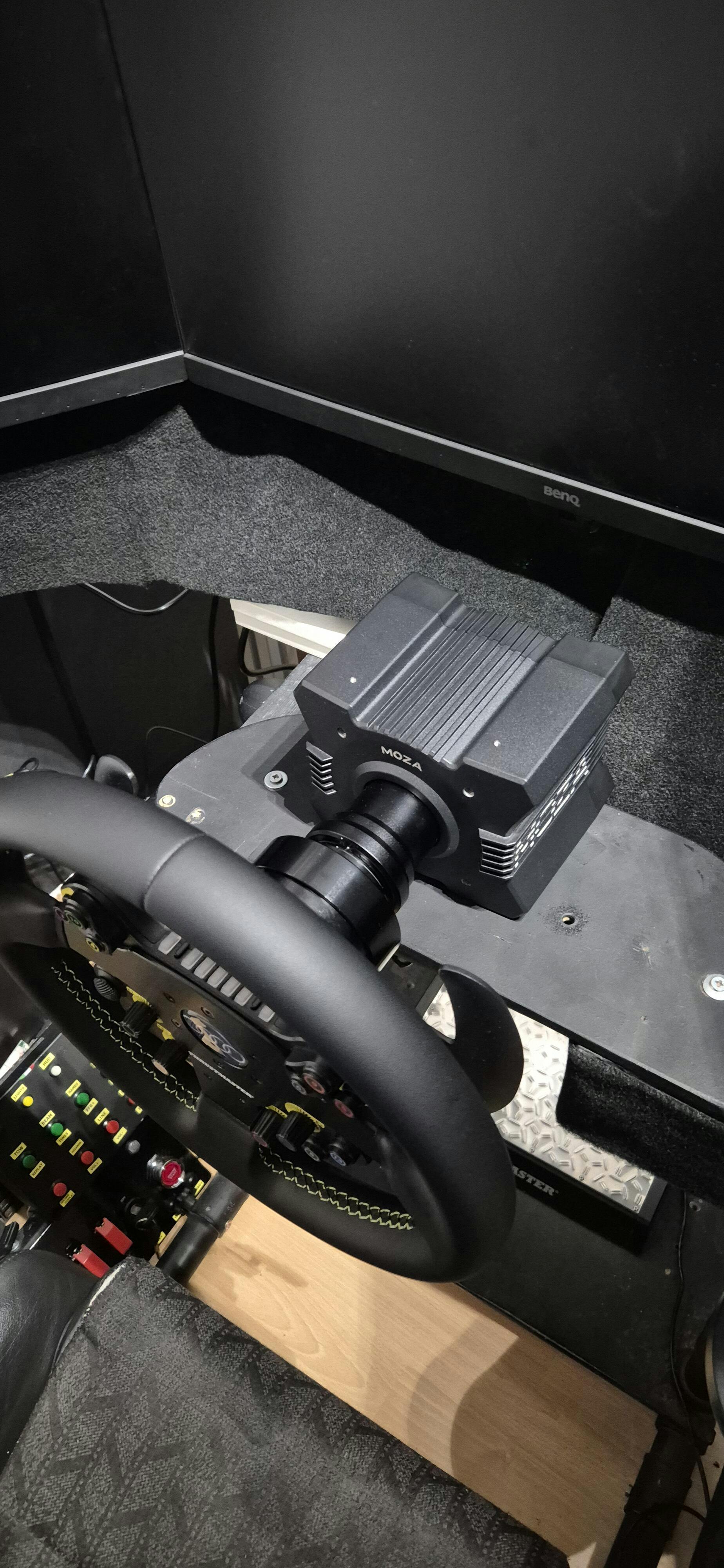

Is the R9 V3 suitable for desk setups?

Yes. The compact design of the R9 V3 makes it ideal for desk users. It supports desk clamps and mount adapters, allowing for flexible installation on various setups.

What is the maximum torque of the R9 V3, and what type of games is it best for?

The R9 V3 delivers a maximum torque of 9 Nm, making it well-suited for a wide range of racing sims—including F1, GT, rally, and street racing games.

Does the MOZA R9 V3 work with other MOZA ecosystem products?

Yes. The R9 V3 is fully compatible with the MOZA Racing ecosystem, including pedals, shifters, dash displays, and more. All devices can be configured through the MOZA Pit House software.
