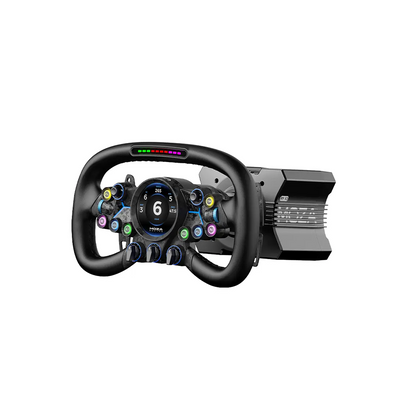

R9 V3 and Vision GS Bundle

Name: R9 V3 and Vision GS Bundle
Brand: MOZA Racing
SKU: R9 V3 and Vision GS Bundle
Price: 1129.00 EUR
Availability: InStock

€1.129,00 €1.168,00

Tax included.Shipping calculated at checkout.

Elevate Your Racing Experience with the R9 V3 and Vision GS Bundle
Designed for sim racers seeking a balance of performance and versatility, this bundle combines the 9 Nm R9 V3 direct-drive base with the Vision GS steering wheel. Featuring a 2.85-inch HD touchscreen, 72 programmable inputs, and aerospace-grade construction, it offers intuitive control and seamless integration across MOZA and third-party systems. Ideal for GT, endurance, and street racing enthusiasts.

Learn more about the individual products:

From July 24th, buy a Vision GS GT Wheel and get a Universal Hub Kit for FREE!

Product variants

Add a FREE Hub Kit for your Vision GS GT Wheel!

MOZA Universal Hub Kit

€49,00 €59,00

Dispatched within 5 business days.

14-Day Returns Policy

Up to 24-Month Warranty Protection

Fast Shipping from EU Warehouse

Pairs well with

R9 V3 and Vision GS Bundle

Dispatched within 5 business days.

€1.129,00

At a Glance

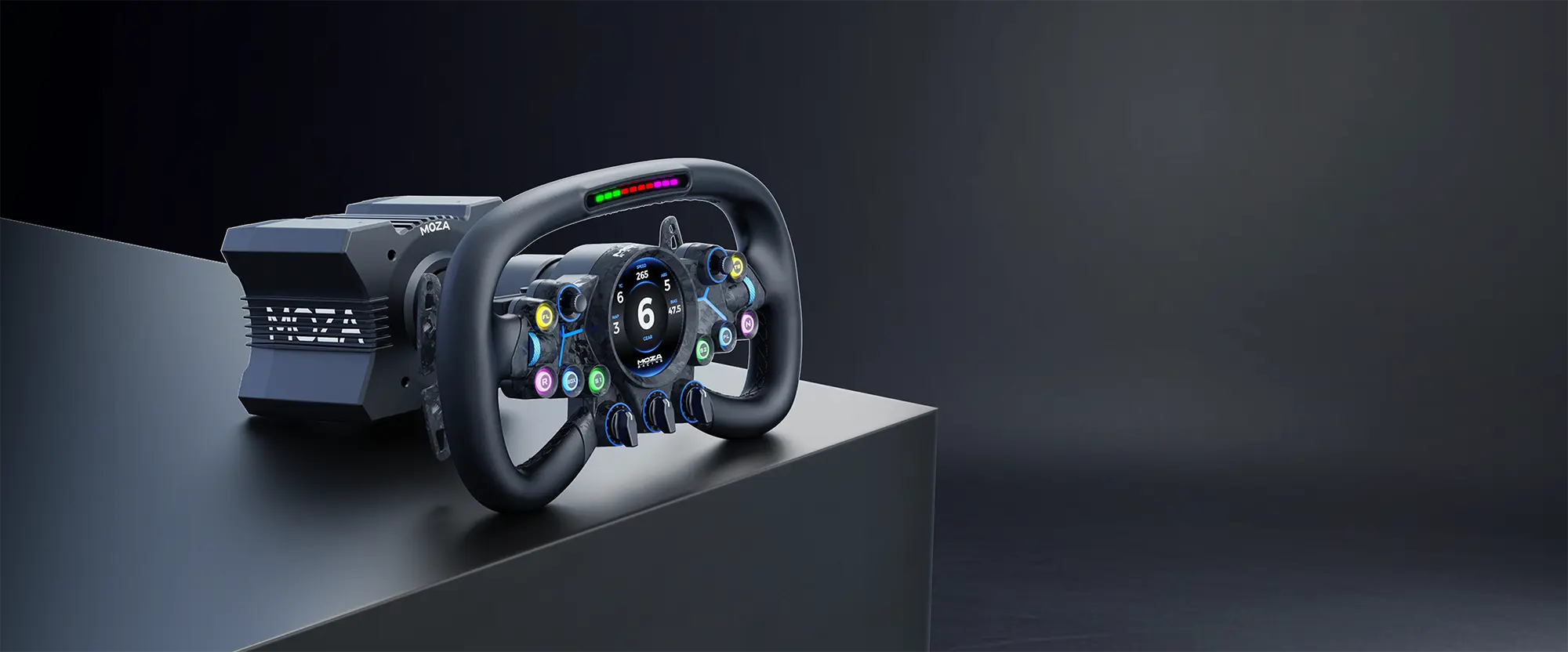

R9 and Vision GS Bundle

The MOZA R9 V3’s 9 Nm direct-drive base delivers pure, detailed force feedback, paired with the Vision GS wheel’s HD touchscreen and premium build for total control and unmatched immersion.

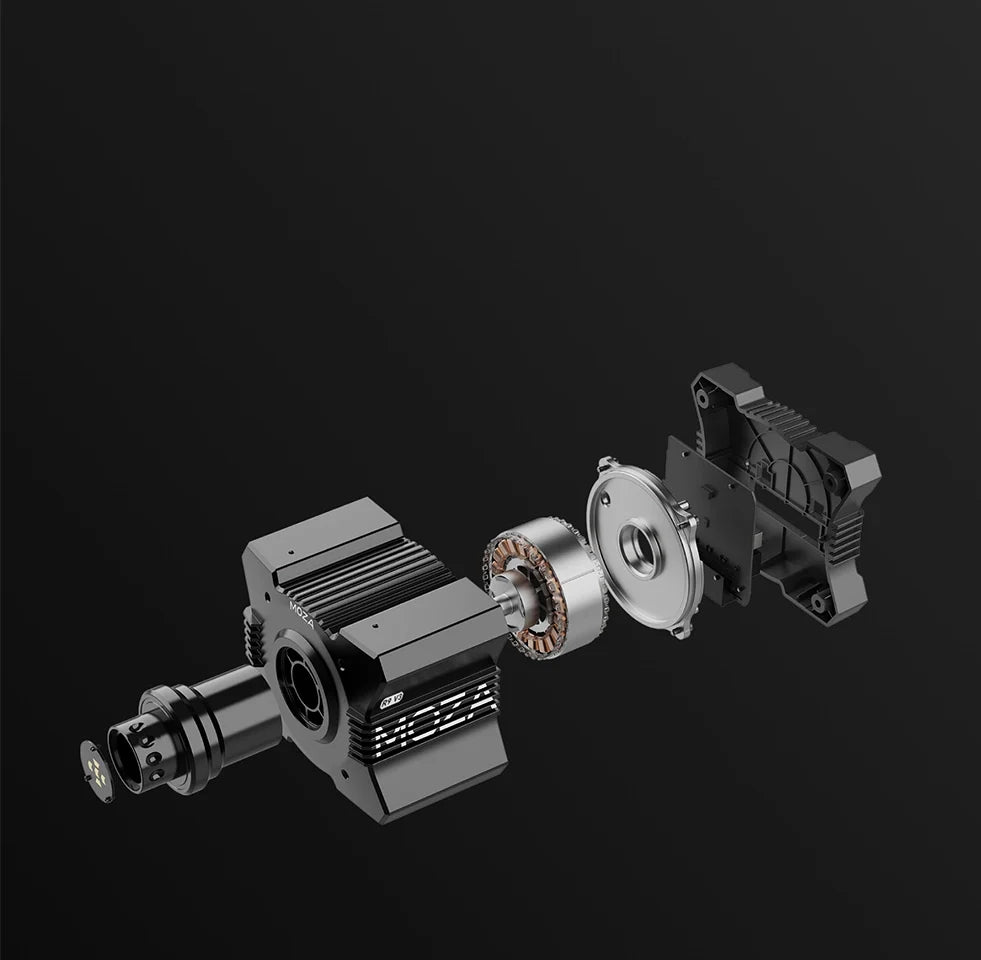

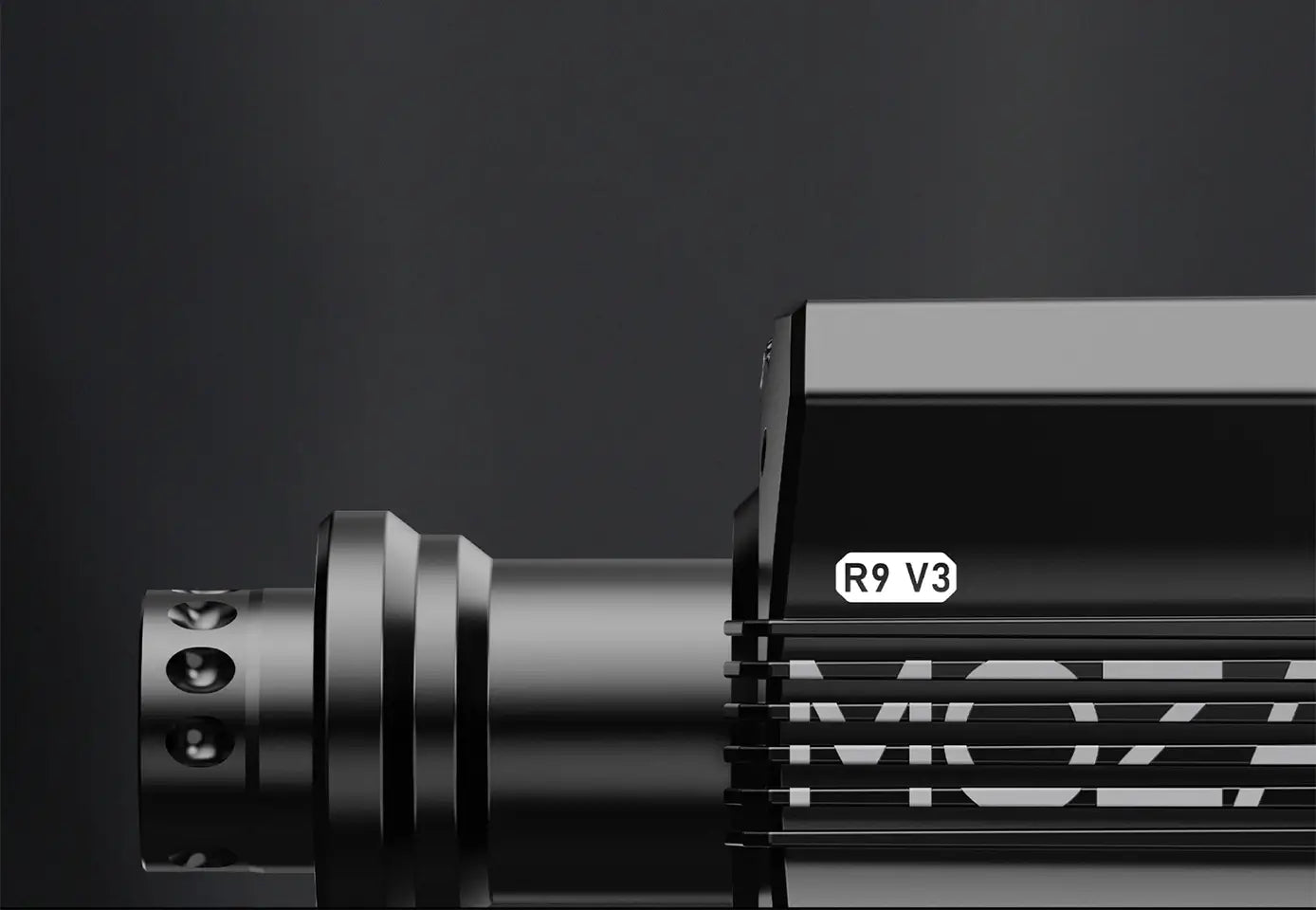

Minimum Weight & Maximum Torque

Maximum torque from a compact body. The R9's 9N·m of torque can simulate a full range of steering forces and car handling characteristics.

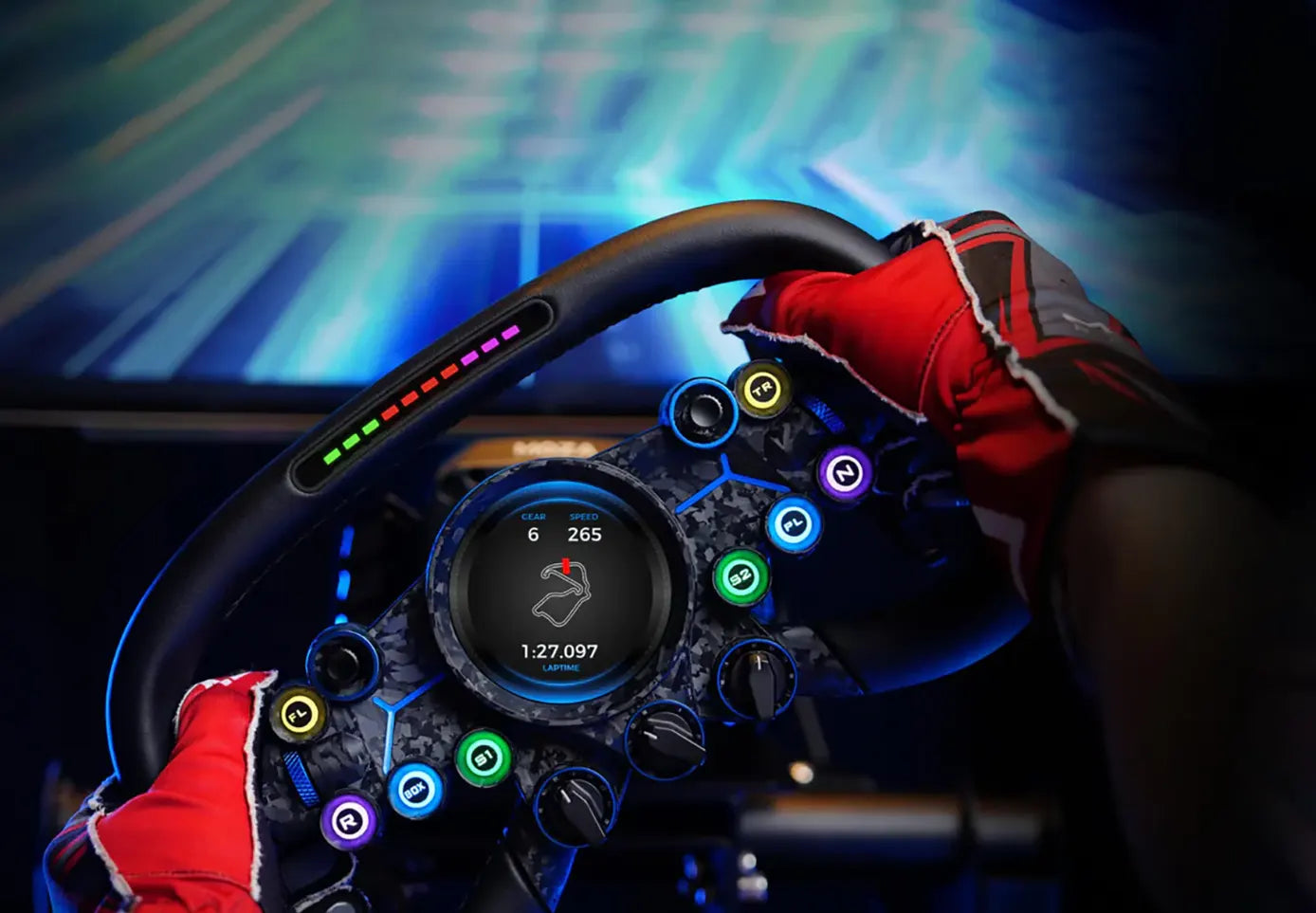

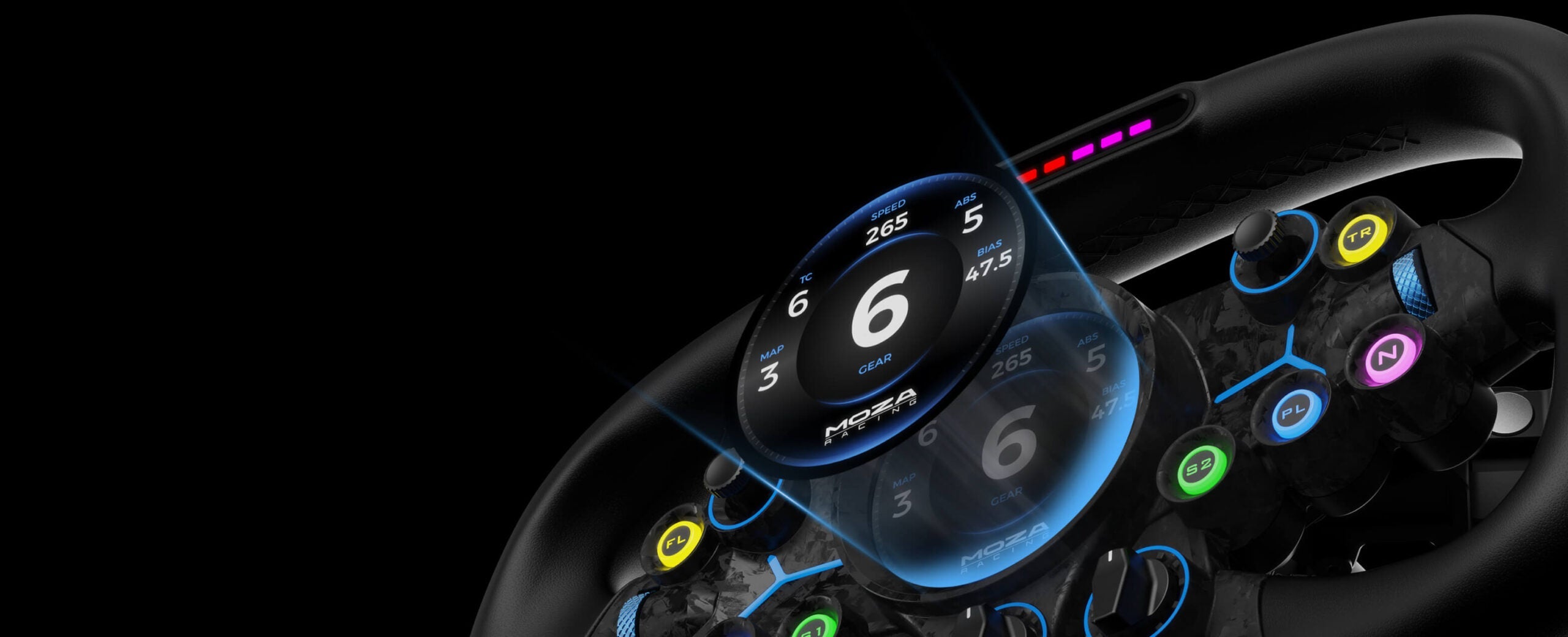

HD Circular Display Screen

The MOZA Vision GS wheel features a 2.85-inch high-definition circular touch screen with a 60Hz refresh rate.

Horizontal Screen View

Equipped with a gyroscope and MOZA software algorithms, the screen remains perfectly horizontal, ensuring low latency and enhanced visibility.

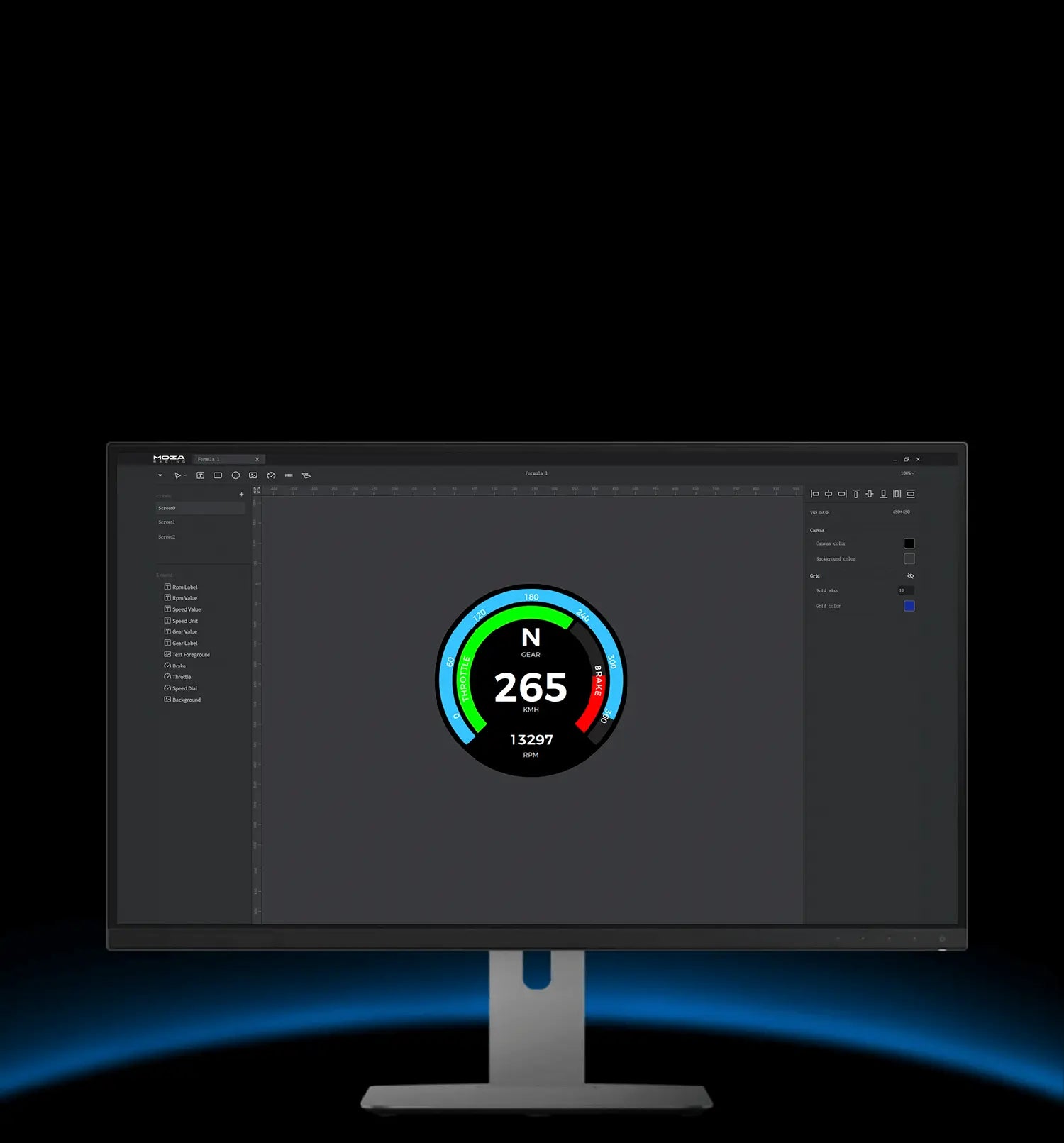

Fully Customizable UI System

MOZA leads as the first sim racing hardware manufacturer with a proprietary UI customization system. It offers 10 presets and complete freedom for users to create their own personalized UI dash displays.

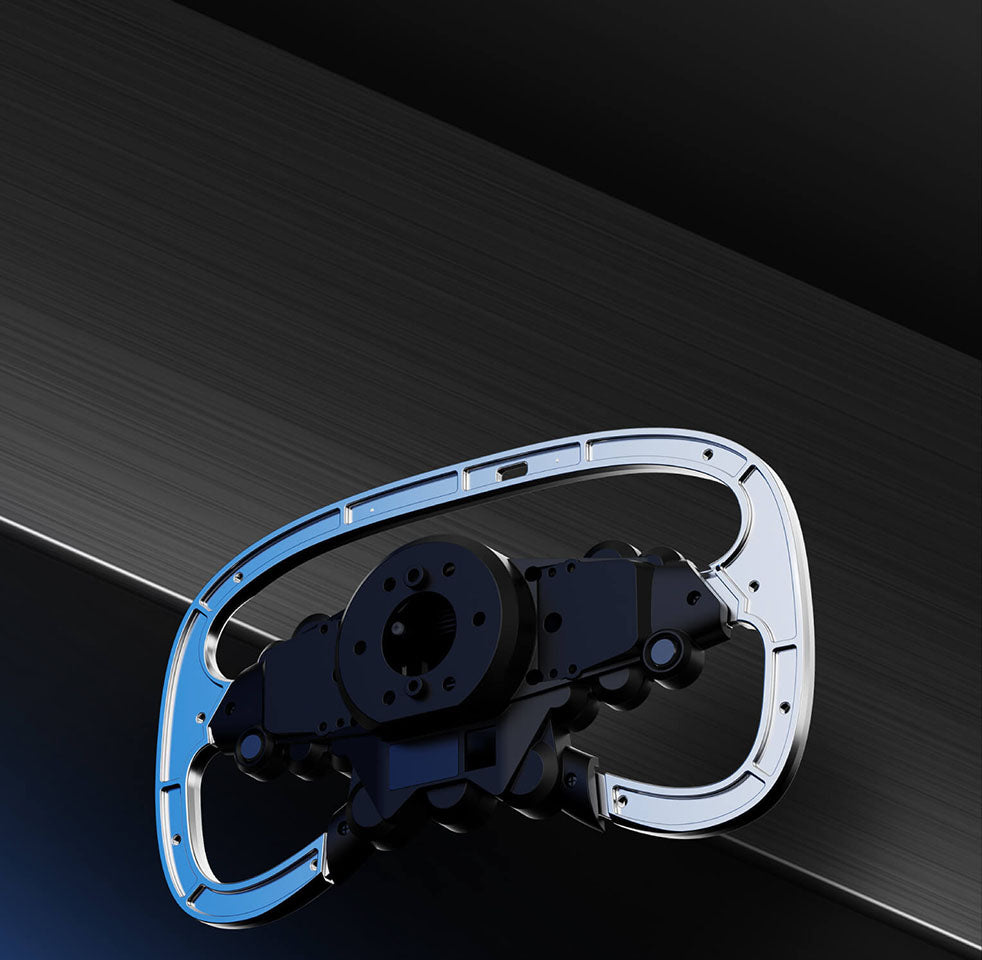

Aerospace-Grade Aluminum Alloy Construction

Meticulously crafted with CNC precision, the framework and back plate feature an aerospace-grade aluminum alloy build. The material presents a refined metallic texture and ensures exceptional strength and rigidity.

Aerospace-Grade Aluminum Alloy Construction

Meticulously crafted with CNC precision, the framework and back plate feature an aerospace-grade aluminum alloy build. The material presents a refined metallic texture and ensures exceptional strength and rigidity.

Open Ecosystem

It can be directly connected to a PC via MOZA's universal adapter, making it compatible with third-party bases outside of MOZA’s ecosystem, showcasing MOZA's open and inclusive ecosystem philosophy.

SPECS

MOZA Vision GS Wheel

Size: 310mm
Back Plate Material: Aerospace-grade aluminum alloy
Face Plate Material: Carbon fiber reinforced composite
Grip Material: Microfiber leather
Display Screen: 2.85-inch high-definition circular screen
Display UI: Fully customizable
Short-Travel Backlit Buttons: 8
Backlit Buttons Colors: 16.7 million colors
Rear Buttons: 2
Aluminum Alloy Rotary Encoders: 3
Aluminum Alloy Thumb Encoders: 2
7-Way Switch: 1
Universal Joystick: 1
Shift Indicator Lights: 10 top-mounted RPM indicator
Shift Indicator Lights Colors: 16.7 million colors
Shift Paddles: Carbon fiber magnetic shift paddles
Dual Clutch Paddles: Hall sensor magnetic paddle with dual clutch
Intelligent Telemetry: Supported
Fully Adjustable RPM LEDs through MOZA Pit House: Supported
Release Method: All-aluminum quick release
Communication Methods: Wireless or via conductive slip ring
Compatibility: It is compatible with all MOZA wheelbases and works with 3rd party wheelbases via the MOZA hub.

MOZA R9 V3 DD Base

Platform: PC
FFB Drive System: Direct Drive
Max Wheel Rotation: Limitless
Peak Torque: 9 N·m
Peak Power: 180W
Input Voltage: 110V~220V AC → 36V DC
USB Refresh Rate: 1000Hz
Wheel Base Indicator Light: Supported
App Functionality: Supported (MOZA Pit House & MOZA Mobile App)
Quick Release: MOZA Quick Release
Connection Ports: Power, DC Input, Pedals, E-stop, USB, Dash, Shifter, Handbrake
Firmware Updating: Applicable
Temperature Control System: Intelligent Temperature Monitoring & Active Cooling
Encoder: 21-bit Magnetic Encoder (2,097,152 steps per revolution)
Motor Type: High-performance Servo Motor (18-Slot / 16-Pole Configuration)
Housing Material: Aviation Grade Aluminum Alloy
Color: Black
Mounting: 4-hole bottom mount; optional table clamp and side mounting supported
Table Clamp: Optional
Side Mounting: Optional
Emergency Stop Switch: Optional
Size (L x W x H): 240 × 157 × 124 mm
Accessories: User Manual, Warranty Card, Power Supply, USB Cable, Toolkit

User Manual

MOZA R9 DD Wheelbase User Manual >

MOZA Vision GS User Manual >

WHAT'S INBOX

MOZA Vision GS Wheel * 1
MOZA R9 DD Base * 1
Adapter
USB Cable
Toolkit
User Manual
Warranty Card
MOZA Sticker

FAQs

Still have questions? Get help from a MOZA expert.

What makes the R9 V3 base different from other direct-drive wheel bases?

The R9 V3 delivers 9 Nm of consistent torque through MOZA’s NexGen 4.0 force feedback technology, ensuring precise, smooth, and responsive control. Its compact, aerospace-grade aluminum construction offers exceptional durability without compromising performance.

How does the Vision GS wheel enhance my racing experience?

The Vision GS features a 2.85-inch HD touchscreen with customizable UI, allowing real-time telemetry display and quick access to racing functions. With 72 programmable inputs and premium materials, it provides both tactile precision and intuitive control.

Can I mount the R9 base to any sim rig?

The R9 supports industry-standard mounting patterns and includes mounting holes compatible with most aluminum profile rigs and wheel stands. We also offer optional desk clamps if needed.

Is this bundle beginner-friendly?

Absolutely. While the R9 offers high-end performance for experienced sim racers, the plug-and-play nature of the bundle and intuitive Pit House software make it accessible for newcomers as well.

How do I update firmware and software?

The MOZA Pit House software supports both the R9 V3 and Vision GS. This allows for easy firmware updates, performance tuning, and customization to match your racing style.
